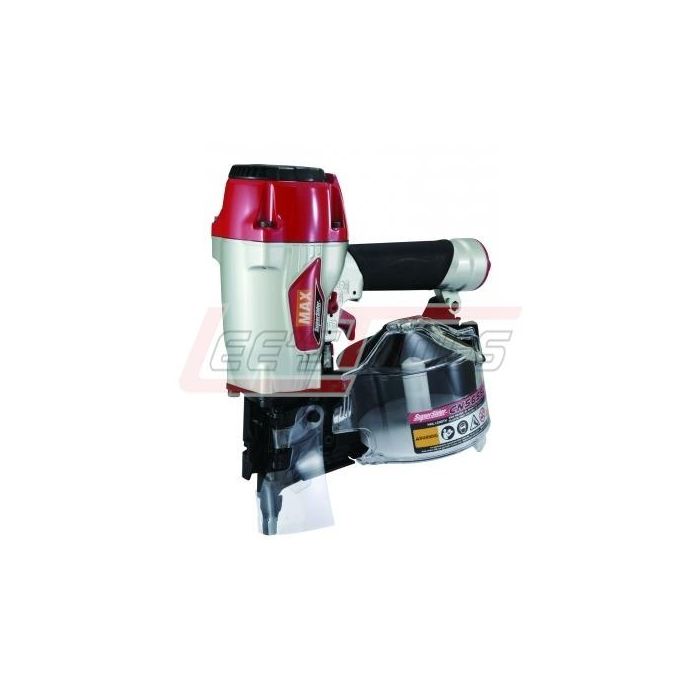

MAX CN565S2 MAX SIDING COIL NAILER
$351.40
Out of stock
SKU
2137811
MAX has nearly 50 years of manufacturing experience of
pneumatic fastening tools. MAX has earned a solid reputation for engineering
top-of-the-line tools that are designed to last a life time. MAX nailers are
made for professional contractors and the MAX standard is quality. MAX's
sales/marketing staff visits end user's jobsites frequently and studies details
of end user's actual jobs, which allow us to create user-friendly unique
features and make MAX tools distinguished from all others.
Features
·
Well balanced with the lightest weight in its
class.
·
Anti-double fire mechanism (US Patent 5597106)
·
Accepts both flat wire welded and plastic sheet
collated nail.
·
Dial adjustable depth control.
·
No-mar contact tip included.
·
Multi-directional exhaust cover
·
Maintenance free end cap filter (US Patent
5637125)
Expendable Supplies
Drives from 1-3/4"x.092"- 2-1/2"x.099" (45mm x 2.5mm - 65mm
x 2.9mm) flat wire welded nails Drives from 1-1/4" x .092" - 2-1/2" x .099"
(32mm x 2.3mm - 65mm x 2.5mm) flat plastic sheet collated nails
Applications
·
Siding (Hardboard and cement)
·
Sheathing
·
Fencing
·
Subfloors
·
Roof decking
·
Exterior deck
·
Exterior trim
·
Furring
·
Strapping
Specifications
|
MODEL |
CN565S |
|
FIRING METHOD |
Contact trip with anti-double fire mechanism |
|
WEIGHT |
4.9lbs (2.2 kg) |
|
DIMENSIONS |
12-9/16"(H)x 5-1/8"(W) x 10-3/4"(L) (320 x 130 x 273mm) |
|
LOAD CAPACITY |
250 - 400 nails (Wire welded nails) 200 nails (Plastic collated nails) |
|
OPERATING PRESSURE |
60-100 psi (4-7 kg/cm2)(Regulator) |
|
AIR CONSUMPTION |
0.035ft3(1.0lit) /cycle at 90psi(6 kg/cm2) |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MAX |
| Manufacturer Sku | CN565S2 |
