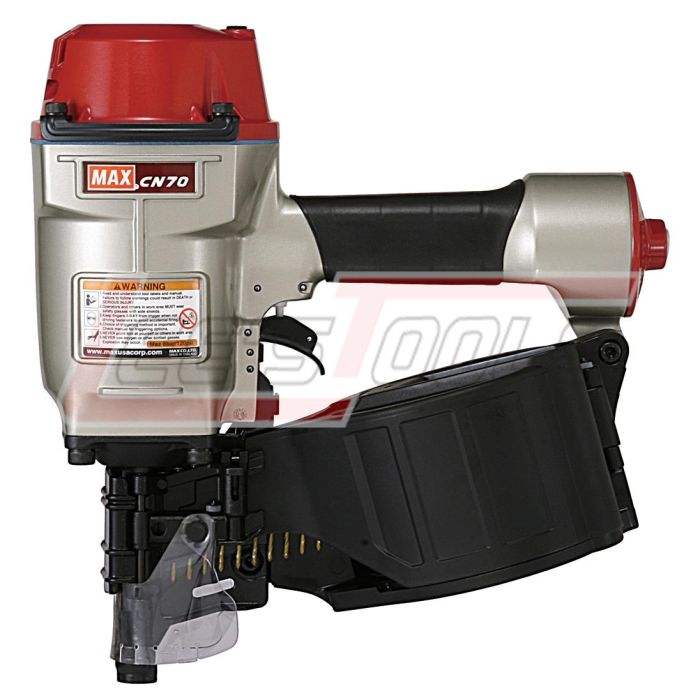

MAX CN70 MAX Heavy Duty Coil Nailer up to 2-3/4"
$312.45
Out of stock
SKU
787507
MAX has nearly 50 years of manufacturing experience of
pneumatic fastening tools. MAX has earned a solid reputation for engineering
top-of-the-line tools that are designed to last a life time. MAX nailers are
made for professional contractors and the MAX standard is quality. MAX's
sales/marketing staff visits end user's jobsites frequently and studies details
of end user's actual jobs, which allow us to create user-friendly unique
features and make MAX tools distinguished from all others.
Features
·
Extra heavy-duty: Die cast aluminum construction
·
Rugged magazine
·
Drives 225-300 nails continuously by
full-loading.
·
Multi-directional exhaust
·
Comfortable rubber grip
·
Equipped with dust cover and body protector
Expendable Supplies
Drives from 1-3/4" x .092" up to 2-3/4" x .113" (45mm x
2.3mm - 70mm x 2.9mm) flat wire welded nails
Applications
·
Making and repairing pallets
·
Crating
·
Fencing
·
Siding, decking and sheathing
Specifications
|
MODEL |
CN70 |
|
FIRING METHOD |
Contact trip (Sequential trip: Available by option) |
|
WEIGHT |
7.6 lbs. (3.5 kg) |
|
DIMENSIONS |
12-7/16"(H) x 5"(W) x 12-1/16"(L) (315 x 128 x 306mm ) |
|
LOAD CAPACITY |
225 - 300 nails |
|
OPERATING PRESSURE |
70-100 psi (5-7 kg/cm2) (Regulator) |
|
AIR CONSUMPTION |
0.053ft3 (1.5lit)/cycle at 90 psi (6 kg/cm2) |
Fastener
Specification
|
Collation type |
Flat wire welded nails |
|
Collation angle |
15 degree |
|
Length |
1 3/4"- 2 3/4" |
|
Shank diameter |
.092"- .113" |
|
Head diameter |
.224"- .275" |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MAX |
| Manufacturer Sku | CN70 |
