METABO 602335420 14" - 4,000 RPM - 15.0 AMP
$283.24
In stock
SKU
2531952

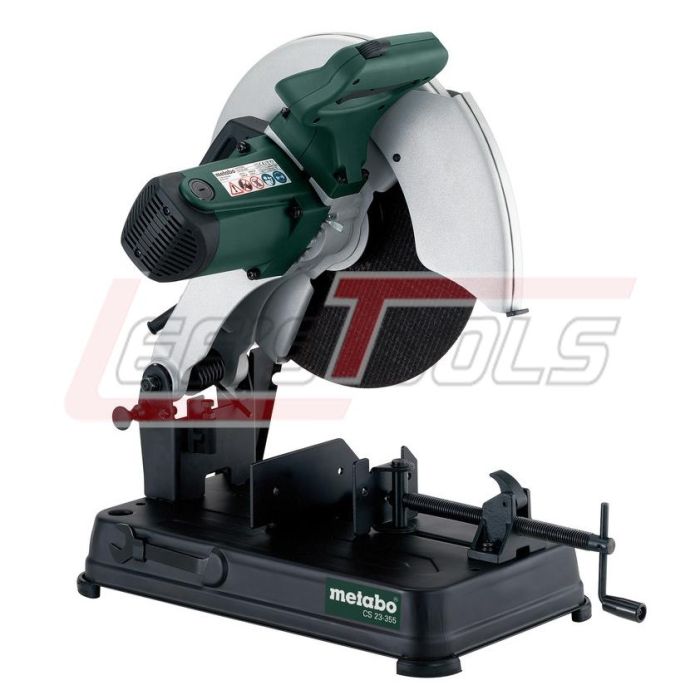

CS 23-355 (602335420) METAL CHOP SAW
CARDBOARD BOX
Features
- For single phase alternating
current
- Powerful and fast cutting for
profiles, pipes and rods made of steel, cast iron, aluminum and other
non-ferrous metals.
- Motor and gear with ball bearing
for high loads
- Spindle lock for easy disc change
- Quick clamping device with
variable mitre conversion from -15° up to 45°
- Easy to transport due to built-in
handle and locking device
- High safety thanks to swivelling
cutting guard
- Storage for double-ended wrench
on the machine table
- Safe working thanks to adjustable
spark guide plate
- Adjustable cutting depth limiter
Specifications
|
Parameters |
|
|
Amps |
15 AMPS |
|
Grinding wheels (Ø x bore) |
14 x 1 " |
|
Torque |
160 in-lbs |
|
No-load speed |
4100 RPM |
|
Rated input power |
1700 W |
|
Cutting capacity steel bars |
2 1/2 " |
|
Cutting capacity tubes |
5 " |
|
Cutting capacity steel sections |
4 1/2 x 5 1/8 " |
|
Maximum opening of vice jaws |
9 3/8 " |
|
Dimensions of the base plate |
18 7/16 x 11 3/32 " |
|
Transport height |
15 3/4 " |
|
Weight |
37 lbs |
|
Cable length |
8 ft |
|
Noise emission |
|
|
Sound pressure level |
91 dB(A) |
|
Sound power level (LwA) |
104 dB(A) |
|
Uncertainty of measurement K |
3 dB(A) |
Includes
1-Open-ended ring wrench
1-Inner support flange
1-Flange nut
| Availability | In Stock |
|---|---|
| Manufacturer | METABO |
| Manufacturer Sku | 602335420 |
