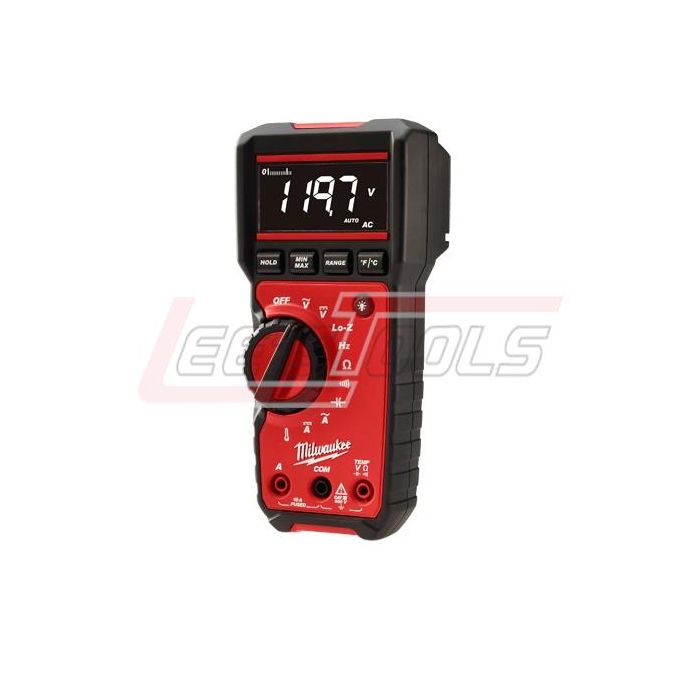

MILWAUKEE 2217-20 DIGITAL MULTIMETER
$141.22
Out of stock
SKU
846191
The Milwaukee Digital Multimeter is a heavy duty True-RMS
meter for professional residential, commercial and industrial applications. The
perfect tool for the professional electrician, the 2217-20 offers rugged
over-molding for increased durability and grip, a large white on black display
for clearer readings, a slide rail system to add proprietary accessories and
over-molded dial for easy one handed use. In addition, the new model meets the
safety specifications required by the electrical user. Covered by Milwaukee
5-Year Warranty.
Includes
·
2217-20 Multimeter
·
Test Leads
·
Dual Banana Thermocouple
·
(2) AA Batteries
·
Manual
Features
·
Wide Voltage range to 600 volts AC/DC
·
Auto Range to millivolts
·
True-RMS for accurate measurement in all
applications
·
Lo-Z measurement to eliminate ghost voltage
·
Frequency measurements from 10Hz to 50kHz
·
Contact temperature measurement from -40 to 752°F
·
Current Measurement to 10 amps AC/DC
·
High Contrast, White on Black Display with
Backlight for easy reading
·
Rugged over-molding increases durability and user
grip
Specifications
|
Voltage Range |
6mV to 600V AC/600mV to 600V DC |
|
Safety Category Rating |
CAT III 600V |
|
Temperature Range |
-40°F to 752°F |
|
TRMS |
Yes |
|
AC Amps |
0.001-10.00A |
|
DC Amps |
0.001-10.00A |
|
Frequency |
Yes |
|
Lo-Z |
Yes |
|
Hz (Amps or Volts) |
9.999Hz-50.00kHZ |
|
mV DC |
Same as VDC (no switch
function) |
|
Ohms |
600.0 Ohm-40.00M Ohm |
|
Auto Calibration |
NO-Recommend sending in for
calibration service once every year |
|
Dual Banana Thermocouple Input |
Yes |
|
MIN/MAX/AVG/DIF |
MIN/MAX |
|
Continuity |
YES<30Ohms |
|
Capacitance |
0.1-1000uF |
|
Backlight |
Yes |
|
Temp |
Yes |
|
Hold |
Yes |
|
Bargraph |
Yes |
|
Display |
High Contrast White on Black |
|
Non-Contact Voltage |
Accessory |
|
LED Work Light |
Accessory |
|
Rugged Overmolding |
Yes |
|
Switch Type |
Dial |
|
Accessory Attachment |
Proprietary rail system; NCVD,
Magnet |
|
Battery |
Alkaline |
|
No of Batteries Included |
(2) AA Batteries |
|
Length |
6.5 in |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MILWAUKEE |
| Manufacturer Sku | 2217-20 |
