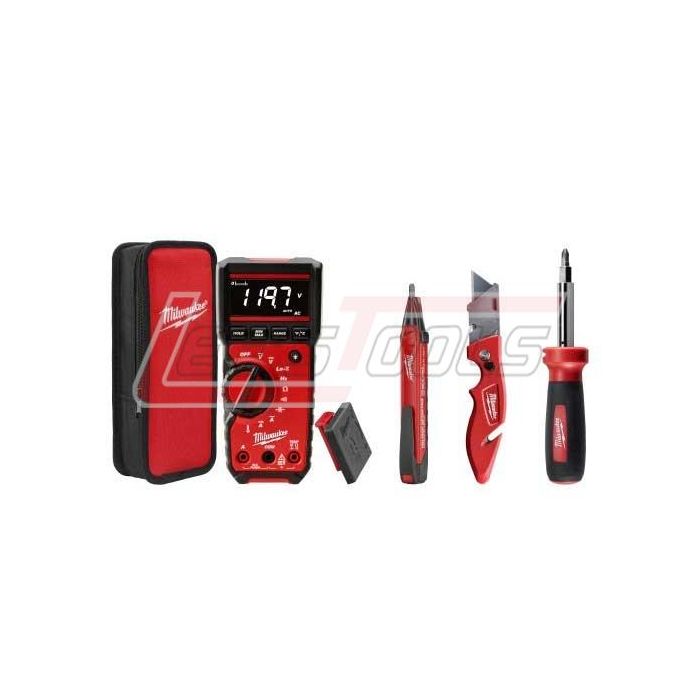

MILWAUKEE 2220-20 ELECTRICAL COMBO KIT
2220-20 Electrical Combo Kit includes four tools and four
accessories for the professional electrician working residential, commercial or
industrial applications. The 2217-20 Digital Multimeter is True-RMS and includes
all the features that are needed to get the job done in the field, on-site or in
the plant. It includes: High contrast white on black display for easy reading in
all environments, CAT III 600V, up to 600V AC/DC, Lo-Z measurement to eliminate
ghost voltage, frequency to 50kHz, and resistance to 40 Mohms. The 2202-20
Voltage Detector with LED is a rugged tool with the highest safety rating in the
industry, CAT IV 1000V with a wide 50 to 1000 volt AC range. It has a built-in
LED that lights up any work area. The 48-22-1901 Fastback™ Utility Knife
features one handed blade opening, tool free blade changes, built-in wire
stripping, and integrated gut hook to cut without opening the knife. The
48-22-2114 11 in 1 Multi-Tip Screwdriver has 10 bits and nut drivers most
requested by professionals. The Milwaukee ECX™ bit (patent pending) has a
superior fit for specialty screws. Includes electrical test lead set, dual
banana thermocouple, magnetic meter holder, soft meter case, all batteries for
the 2217-20 and 2202-20 and all manuals. Nothing but HEAVY DUTY.
Includes
·
2217-20 Digital Multimeter
·
2202-20 Voltage Detector with LED
·
48-22-1901 Fastback Utility Knife
·
48-22-2114 11 in 1 Multi-Tip Screwdriver
·
48-55-0175 Soft Meter Case
·
Magnet Meter Holder
·
Electrical Test Leads
·
Thermocouple
·
(2) AA Batteries
·
(2) AAA Batteries
·
Manuals
Features
·
2217-20: True-RMS for accurate measurement in all
applications
·
2217-20: Wide Voltage range to 600 AC /DC volts
·
2217-20: High Contrast, White on Black Display
with Backlight for easy reading
·
2217-20: Lo-Z measurement to eliminate ghost
voltage
·
2202-20: Wide 50 - 1000 AC voltage range with
built-in LED light
·
2202-20: Loud Beeper Indicates Voltage
·
2202-20: CAT IV 1000V for highest safety
available
·
48-22-1901: One handed blade opening - flip blade
open up to 3X faster
·
48-22-2114: ECX™ Bit (patent pending) - Superior
fit in Specialty Screws
Specifications
|
Voltage Range |
6mV to 600V AC/600mV to 600V DC |
|
Safety Category Rating |
CAT III 600V |
|
Temperature Range |
-40F to 752F |
|
TRMS |
Yes |
|
AC Amps |
0.001-10.00A |
|
uA DC |
No |
|
DC Amps |
0.001-10.00A |
|
AC Volts |
6.00mV,600V |
|
DC Volts |
6.00mV,600V |
|
Frequency |
Yes |
|
Lo-Z |
Yes |
|
Hz (Amps or Volts) |
9.999Hz-50.00kHZ |
|
mV DC |
Same as VDC (no switch
function) |
|
Ohms |
600.0Ohm-40.00MOhm |
|
Scan for AC Electrical |
2202-20: Yes |
|
Auto Calibration |
No-Recommend sending in for
calibration service once every year |
|
K-Type Thermocouple input |
Yes |
|
MIN/MAX/AVG/DIF |
MIN/MAX |
|
Continuity |
Yes <30 Ohms |
|
Capacitance |
0.1-1000uF |
|
Backlight |
Yes |
|
Temp |
Yes |
|
Hold |
Yes |
|
MIN/MAX |
Yes |
|
Bargraph |
Yes |
|
Display |
High Contrast White on Black |
|
Non-Contact Voltage |
2202-20: Yes |
|
LED Flashlight |
2202-20: Yes |
|
Rugged Overmold |
Yes |
|
Accessory Attachment |
Proprietary rail system; NCVD,
Magnet |
|
Battery |
Alkaline |
|
No of Batteries Included |
2217-20: (2) AA Batteries
2202-20: (2) AAA Batteries |
|
Length |
6.5 in |
| Availability | Out of Stock |
|---|---|
| Manufacturer | MILWAUKEE |
| Manufacturer Sku | 2220-20 |
