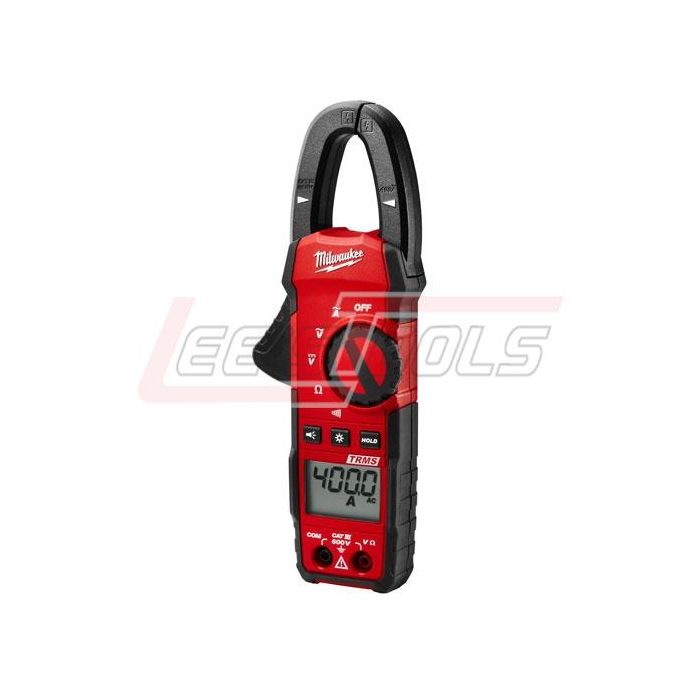

MILWAUKEE 2235-20 CLAMP METER 400 AMP
Heavy duty True-RMS electrical current tester for
professional residential, commercial, and industrial applications. The perfect
tool for the professional electrician; includes all the features that are needed
to get the job done in the field, on-site or in the plant. Milwaukee 2235-20
Clamp Meter features: jaw size of 1.0” measuring up to 350 MCM cable; rated CAT
III 600V; current measurement to 400 amps AC; voltage measurement to 600 volts
AC/DC; LED Work Light to improve task lighting; resistance measurement to 4000
ohms; test for continuity; black on white display and backlight for easier
reading; rugged over-molding for increased durability and user grip; includes
one (1) electrical test lead set, two (2) AAA batteries, and manual; covered by
5 year warranty. Nothing but HEAVY DUTY.
Includes
·
2235-20 Clamp Meter
·
One (1) electrical test lead set, red and black
·
Two (2) AAA batteries
·
Manual
Features
·
Measures up to 400 amps AC, Large 1.0” jaw
opening
·
Thin Jaw Profile for easier wire measurement in
panels or in bundles
·
Wide Voltage range to 600 AC/DC volts
·
True-RMS for accurate measurement in all
applications
·
Built-In LED Work Light
·
CAT III 600V for increased safety
·
Black on White Display with Backlight for easier
reading
·
Rugged over-molding increases durability and user
grip
Specifications
|
Voltage Range |
600V AC/DC |
|
Safety Category Rating |
CAT III 600V |
|
TRMS |
Yes |
|
AC Amps |
400 amps |
|
AC Volts |
600 volts |
|
DC Volts |
600 volts |
|
Ohms |
4000 ohms |
|
Auto Calibration |
No-Recommend sending in for
calibration service once every year |
|
Continuity |
Yes |
|
Backlight |
Yes |
|
Hold |
Yes |
|
Jaw Size |
1.0" |
|
Display |
Black on White Display |
|
LED Flashlight |
Yes |
|
Rugged Overmold |
Yes |
|
Switch Type |
Dial |
|
Battery |
Alkaline |
|
No of Batteries Included |
(2) AAA Batteries |
|
Length |
7 in |
| Availability | In Stock |
|---|---|
| Manufacturer | MILWAUKEE |
| Manufacturer Sku | 2235-20 |
