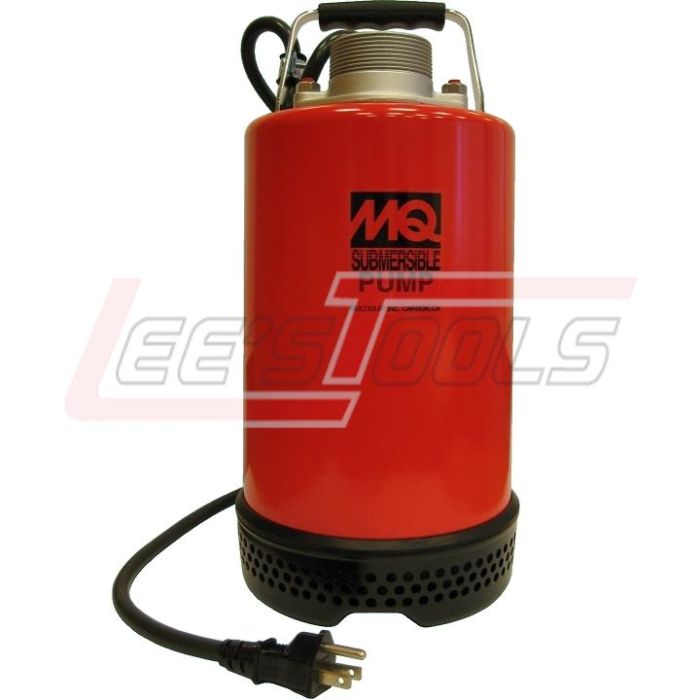

MULTIQUIP ST2037 2" 115V 10 1 HP 73 GPM 37' head - Electric Submersible Pump
$402.12
Out of stock
SKU
1030807
ST2037
2 Inch Discharge, 115V 1Ø, 1.0 HP, 73 GPM, 37' Total Head
This lightweight, compact submersible centrifugal pump is
ideal for moving water in multiple confined and open area applications. This is
a powerful, versatile, low maintenance pump that is perfect for a wide range of
operations supporting Contractors, Service Utilities, Municipalities, and
Homeowners. Further, the ST2037 incorporates a rugged cast aluminum housing,
internal thermal overload protection, dual shaft seals, sealed ball bearings
impeller and molded 25’ Power Cable with strain relief.
·
1.0HP, 115V/9.8A, 1Ø, UL & CUL Listed Electric
Motor.
·
Built-in Overload Protection.
·
2” (NPT) Female Discharge Port.
·
Reliable double mechanical oil-filled seals.
·
Cast iron/steel motor casing serves as heat
conductor.
·
Pumps Liquid Up To 120° F.
·
25’ of molded power cord w/strain relief
·
Dewaters Flat Surfaces Up To 1/2” Levels.
|
Unit Specifications |
|||
|
Impeller Type |
Neoprene Rubber over Cast-Iron |
||
|
Impeller Disc Size |
2 in |
50 mm |
|
|
Total Head |
37 ft |
11.3 m |
|
|
Water Capacity |
73 gpm |
276 lpm |
|
|
Max. Solid Intake |
0 in |
0 mm |
|
|
Electrical Specifications |
|||
|
Power |
1 HP |
0.75 kW |
|
|
Phase |
Single |
||
|
Voltage |
115 V |
||
|
Starting Amperage |
34.5 A |
||
|
Running Amperage |
6.9 A |
||
|
Cable Length |
50 ft |
15.2 m |
|
|
Dimensions & Weights |
|||
|
Pump Diameter |
7.4 in |
188 mm |
|
|
Overall Height |
15.4 in |
391 mm |
|
|
Operating Weight |
31 lb |
14 kg |
|
Notice: Features and equipment
specifications are subject to change without notice.
