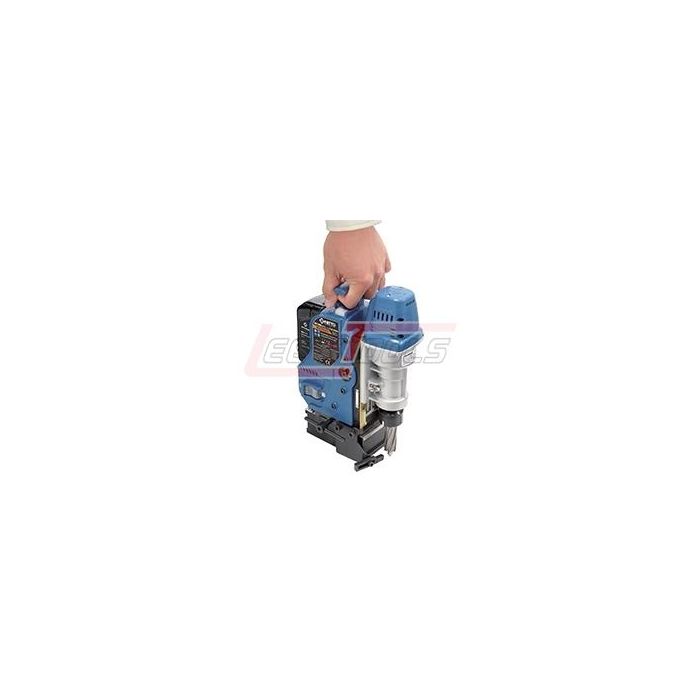

NITTO KOHKI CLA-2720 Cordless Manual Feed Magnetic Base Drill - 430 rpm 230V Charger, 1-1/16 x 3/4" hole capacity
$2,695.00
In stock
SKU
4282308
WA-3500 Nitto Kohki
Simi-Automatic Mag-Based Drill
Standard Features
-
1-3/8" x 2 " hole drilling
capacity
-
Automatic feed with slow start
mechanism
-
Step feed feature optimizes cutter
penetration
-
Load detection system monitors and
regulates motor speed and cutting feed
Powerful 1100 watt double insulated motor -
Overload stop detection system
helps prevent motor and cutter damage
-
Load detection system monitors and
regulates motor speed and cutting feed
-
Sealed arbor system with through
spindle coolant
-
Built-in motion detection system
-
One touch arbor system
-
No tools required for cutter
installation and removal
-
Accepts carbide tipped and High
Speed annular cutters
-
Precision machined die cast
aluminum mainframe, motor slide and arbor support bracket
-
One year limited warranty
Specifications
|
Power Source |
110-120V AC |
|
Rated Power Consumption |
1,010 W |
|
Rated Current |
10.2 A |
|
No Load Speed |
950 RPM |
|
Magnet Power Consumption |
34 W |
|
Hole Diameter |
1-3/8" Max |
|
Depth of Cut |
2" Max |
|
Magnet Holding Power |
1,583 lbs |
|
Magnet Dimensions |
3-5/8" x 8-1/2" |
|
Weight |
44 lbs |
Standard Accessories
-
1-3/8" & 2" Pilot pin
-
3 mm Hex Key
-
8 x 10 mm combination wrench
-
Chip guard assembly
-
Motor side handle
-
Sample cutting fluid
-
Safety chain
-
Carrying case
| Availability | In Stock |
|---|---|
| Manufacturer | NITTO KOHKI |
| Manufacturer Sku | CLA-2720 |
