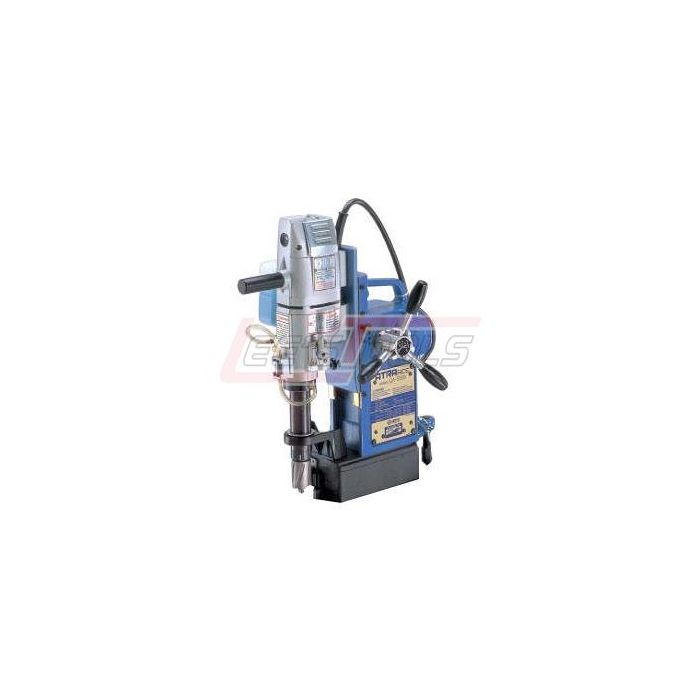

NITTO KOHKI QA-5000 Automatic Drill with One Touch 2" X 2" Hole capaity
$2,835.34
Out of stock
SKU
1033583
Portable Fully Automatic Drilling Machine
Quick Auto Drills increases productivity and reduce hole
drilling cost
Load Detection
·
Side mounted LED graph displays current drill
status before, during and after the drilling operation. The load monitoring LEDs
also offer advanced notice of worn or damaged cutters.
Auto-return Function
·
Once drilling is completed and the slug is
ejected from the hole, the cutting bit is quickly retracted.
·
This quick drill motor retraction allows the user
to move on to the next hole more quickly..
Specifications
·
Smallest and lightest Magnetic Base Drill with
3/8” chuck
·
Very easy to handle
·
Superior workhorse for drilling small holes with
twist drill bits
|
Power Source (Single Phase) |
110-120 V AC 50/60Hz |
|
|
Electric Drill |
Rated Power Consumption (W) |
1,010 |
|
Rated Current (A) |
9 |
|
|
No Load Speed (rpm) |
400 / 750 |
|
|
Magnet Power Consumption (W) |
75 |
|
|
Capacity |
Hole Diameter |
2" max. |
|
Depth of Cut |
2" max. |
|
|
Magnet Holding Power (lbs.) |
2,200 |
|
|
Magnet Dimensions (inch) |
3-15/16" x 7-15/16" |
|
|
Weight (lbs.) |
57 |
|
Accessories Included
·
UEA0835-0 pilot pin 5/16" x 1-3/8" DOC
·
UEA0850-0 pilot pin 5/16" x 2" DOC
·
3 mm allen wrench
·
4 mm allen wrench
·
8 mm x 10 mm combination spanner
·
Motor side handle
·
Sample cutting fluid
·
Safety chain
·
Tool box
| Availability | Out of Stock |
|---|---|
| Manufacturer | NITTO KOHKI |
| Manufacturer Sku | QA-5000 |
