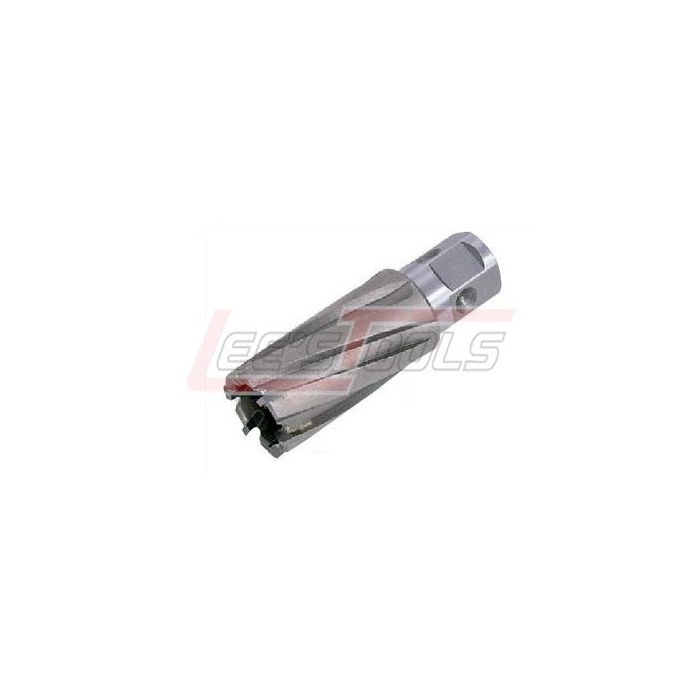

NITTO KOHKI TK00519-0 20mm X 1-3/8" DOC JETBROACH CARBIDE

JETBROACH Cutters

Tungsten Carbide Tipped Annular Cutters

For simplicity, one-touch cutter replacement needs no tools

Rationalized Hole-cutting Genuine one-touch cutters

Nitto Kohki has developed the one-touch replacement system for Jetbroach carbide-tipped annular hole cutters. They are designed as one-touch types to be mounted and removed without the use of a tool. This reduces the time needed for hole cutting.

Jetbroach Cutters are far better than twist drills:

·         No dead point

·         Peripheral cutting

·         Blade cutting resistance reduced by 50%

·         Available size: 17.5mm - 100mm dia.

A guide to the selection of circumferential cutting speeds:

Test Drilling is very often the only way to determine the machinability of difficult materials. Use a small size cutter wherever possible in order to minimize trial costs.

Jetbroach Cutter Features

·         Single pass-cutting, no pilot hole required

·         Annular part does all the work so small cutting resistance reduces drilling time

·         Cutting of slated, elongated and edge holes is now possible

·         Fractional and metric cutter sizes to suit wide range of applications

·         Produces little slag and few chips for easy disposal

·         Carbide tips for sharp cutting edges

·         Can also be fitted to and used with previous Atra Ace models using a hexagon socket set-screw

·         Improved concentricity extends cutter life!    Cutter holding system consisting of three balls inside the arbor body produces a self-centering effect during cutting to improve cutter performance and life.

Self-centering effect mechanism to extended cutter life.

Cutter Diameter	Decimal Equivalent	1-3/8" Depth of Cut Part #	2" Depth of Cut Part #	3" Depth of Cut Part #	4" Depth of Cut Part #
11/16"	.687	TK00517-0	TK00559-0	TK01037-0	-
17.5mm	.689	TK00301-0	TK00380-0	-	-
18mm	.709	TK00302-0	TK00381-0	-	-
18.5mm	.728	TK00303-0	-	-	-
19mm	.748	TK00304-0	TK00382-0	-	-
3/4"	.750	TK00518-0	TK00560-0	TK00981-0	-
19.5mm	.767	TK00305-0	TK00383-0	-	-
20mm	.787	TK00306-0	TK00384-0	-	-
20.5mm	.807	TK00307-0	TK00385-0	-	-
13/16"	.812	TK00519-0	TK00561-0	TK00982-0	TK00955-0
21mm	.827	TK00308-0	TK00386-0	-	-
21.5mm	.846	TK00309-0	TK00387-0	-	-
22mm	.866	TK00310-0	TK00388-0	-	-
7/8"	.875	TK00520-0	TK00562-0	TK00983-0	TK00956-0
22.5mm	.885	TK00311-0	TK00289-0	-	-
23mm	.905	TK00312-0	TK00390-0	-	-
23.5mm	.925	TK00313-0	TK00391-0	-	-
15/16"	.937	TK00521-0	TK00563-0	TK00984-0	TK01056-0
24mm	.945	TK00314-0	More Information More Information Availability Out of Stock Manufacturer NITTO KOHKI Manufacturer Sku TK00519-0 WARNING Cancer and/or Reproductive Harm – www.p65Warnings.ca.gov Lee's Tools is not responsible for typographical errors. Please double check prior to ordering. Founded in 1983, Lee's Tools has been trusted by customers of all trades. Coming to us, you'll find a wide selection of quality tools, accessories, parts, equipment and machinery.   Let us help you find the right items! 1924 N. Long Beach Blvd   Compton,  CA  90221   Tel: 310 639 1900  info@leestool247.com COMPANY About Us Contact Us LEGAL Privacy Policy Terms & Conditions Refund Policy License Agreement SUPPORT FAQ Blog Submit a ticket Email Us SUBSCRIBE TO OUR NEWSLETTER Signup for our news, special offers, product updates. Subscribe Copyright © 1983-present Lee's Tools. All rights reserved.
