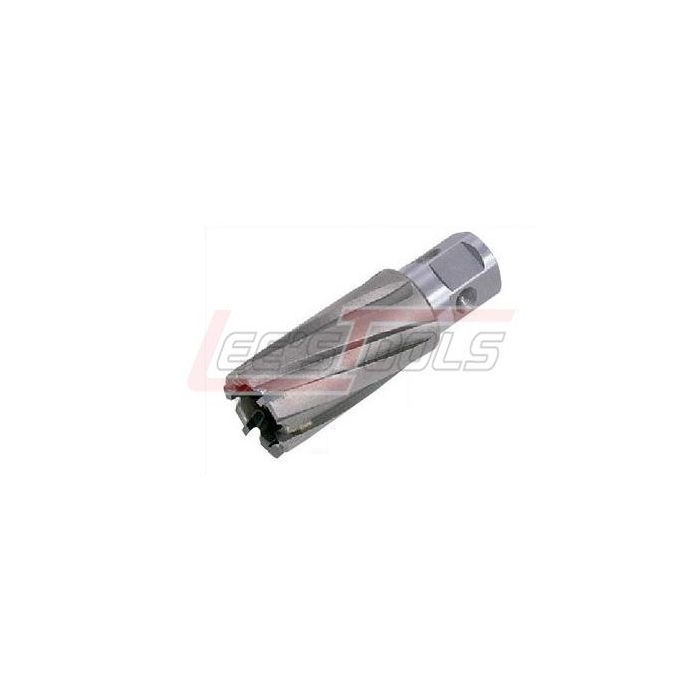

NITTO KOHKI TK00571-0 1-3/8 X 2" DOC JETBROACH CARBIDE
$91.19
In stock
SKU
1034101
JETBROACH Cutters
Tungsten Carbide
Tipped Annular Cutters
For simplicity, one-touch cutter replacement needs no tools
Rationalized Hole-cutting Genuine
one-touch cutters
Nitto Kohki has developed the one-touch replacement system
for Jetbroach carbide-tipped annular hole cutters. They are designed as
one-touch types to be mounted and removed without the use of a tool. This
reduces the time needed for hole cutting.
Jetbroach Cutters are far better than
twist drills:
·
No dead point
·
Peripheral cutting
·
Blade cutting resistance reduced by 50%
·
Available size: 17.5mm - 100mm dia.
A guide to the selection of circumferential cutting speeds:
|
|
feet/min |
m/min |
|
Stainless Steel |
65 - 131 |
20-40 |
|
Mild Steel |
98 - 164 |
30-50 |
|
Cast Iron |
98 – 164 |
30-50 |
|
Brass |
164 - 229 |
50-70 |
|
Aluminum |
229 – 295 |
70-90 |
Test Drilling is very often the only way to determine the
machinability of difficult materials. Use a small size cutter wherever possible
in order to minimize trial costs.
Jetbroach Cutter Features
·
Single pass-cutting, no pilot hole required
·
Annular part does all the work so small cutting
resistance reduces drilling time
·
Cutting of slated, elongated and edge holes is
now possible
·
Fractional and metric cutter sizes to suit wide
range of applications
·
Produces little slag and few chips for easy
disposal
·
Carbide tips for sharp cutting edges
·
Can also be fitted to and used with previous Atra
Ace models using a hexagon socket set-screw
·
Improved concentricity extends cutter life!
Cutter holding system consisting of three balls inside the arbor body
produces a self-centering effect during cutting to improve cutter performance
and life.
Self-centering effect mechanism to extended cutter life.
|
Cutter
Diameter |
Decimal
Equivalent |
1-3/8"
Depth of Cut
|
2" Depth
of Cut |
3" Depth of Cut |
4" Depth
of Cut |
|
11/16" |
.687 |
TK00517-0 |
TK00559-0 |
TK01037-0 |
- |
|
17.5mm |
.689 |
TK00301-0 |
TK00380-0 |
- |
- |
|
18mm |
.709 |
TK00302-0 |
TK00381-0 |
- |
- |
|
18.5mm |
.728 |
TK00303-0 |
- |
- |
- |
|
19mm |
.748 |
TK00304-0 |
TK00382-0 |
- |
- |
|
3/4" |
.750 |
TK00518-0 |
TK00560-0 |
TK00981-0 |
- |
|
19.5mm |
.767 |
TK00305-0 |
TK00383-0 |
- |
- |
|
20mm |
.787 |
TK00306-0 |
TK00384-0 |
- |
- |
|
20.5mm |
.807 |
TK00307-0 |
TK00385-0 |
- |
- |
|
13/16" |
.812 |
TK00519-0 |
TK00561-0 |
TK00982-0 |
TK00955-0 |
|
21mm |
.827 |
TK00308-0 |
TK00386-0 |
- |
- |
|
21.5mm |
.846 |
TK00309-0 |
TK00387-0 |
- |
- |
|
22mm |
.866 |
TK00310-0 |
TK00388-0 |
- |
- |
|
7/8" |
.875 |
TK00520-0 |
TK00562-0 |
TK00983-0 |
TK00956-0 |
|
22.5mm |
.885 |
TK00311-0 |
TK00289-0 |
- |
- |
|
23mm |
.905 |
TK00312-0 |
TK00390-0 |
- |
- |
|
23.5mm |
.925 |
TK00313-0 |
TK00391-0 |
- |
- |
|
15/16" |
.937 |
TK00521-0 |
TK00563-0 |
TK00984-0 |
TK01056-0 |
|
24mm |
.945 |
TK00314-0 |
TK00392-0 |
- |
- |
|
24.5mm |
.965 |
TK00315-0 |
TK00393-0 |
- |
- |
|
25mm |
.984 |
TK00316-0 |
TK00394-0 |
- |
- |
|
1" |
1.000 |
TK00522-0 |
TK00564-0 |
TK00985-0 |
TK00958-0 |
|
26mm |
1.023 |
TK00317-0 |
TK00395-0 |
- |
- |
|
1-1/16" |
1.062 |
TK00523-0 |
TK00567-0 |
TK00986-0 |
TK01058-0 |
|
27mm |
1.063 |
TK00319-0 |
TK00397-0 |
- |
- |
|
28mm |
1.102 |
TK00320-0 |
TK00398-0 |
- |
- |
|
1-1/8" |
1.125 |
TK00554-0 |
TK00568-0 |
TK00987-0 |
TK00960-0 |
|
29mm |
1.141 |
TK00321-0 |
TK00399-0 |
- |
- |
|
30mm |
1.181 |
TK00322-0 |
TK00400-0 |
- |
- |
|
1-3/16" |
1.187 |
TK00555-0 |
TK00565-0 |
TK00988-0 |
TK00947-0 |
|
31mm |
1.220 |
TK00323-0 |
TK00401-0 |
- |
- |
|
1-1/4" |
1.250 |
TK00524-0 |
TK00569-0 |
TK00989-0 |
- |
|
32mm |
1.259 |
TK00324-0 |
TK00402-0 |
- |
- |
|
33mm |
1.299 |
TK00325-0 |
TK00403-0 |
- |
- |
|
1-5/16" |
1.312 |
TK00525-0 |
TK00570-0 |
TK00990-0 |
- |
|
34mm |
1.338 |
TK00325-0 |
TK00404-0 |
- |
- |
|
1-3/8' |
1.375 |
TK00526-0 |
TK00571-0 |
TK00991-0 |
- |
|
35mm |
1.378 |
TK00328-0 |
TK00405-0 |
- |
- |
|
36mm |
1.417 |
TK00602-0 |
TK00406-0 |
- |
- |
|
1-7/16" |
1.437 |
TK00641-0 |
TK00572-0 |
TK00992-0 |
- |
|
37mm |
1.456 |
TK00603-0 |
TK00407-0 |
- |
- |
|
38mm |
1.496 |
TK00604-0 |
TK00408-0 |
- |
- |
|
1-1/2' |
1.500 |
TK00642-0 |
TK00573-0 |
TK00993-0 |
- |
|
39mm |
1.535 |
TK00605-0 |
TK00409-0 |
- |
- |
|
1-9/16" |
1.562 |
TK00643-0 |
TK00574-0 |
TK00994-0 |
- |
|
40mm |
1.574 |
TK00606-0 |
TK00410-0 |
- |
- |
|
41mm |
1.614 |
- |
TK00411-0 |
- |
- |
|
1-5/8" |
1.625 |
- |
TK00575-0 |
TK00995-0 |
- |
|
42mm |
1.653 |
- |
TK00412-0 |
- |
- |
|
1-11/16" |
1.687 |
- |
TK00576-0 |
TK00996-0 |
- |
|
43mm |
1.692 |
- |
TK00413-0 |
- |
- |
|
44mm |
1.732 |
- |
TK00414-0 |
- |
- |
|
1-3/4" |
1.750 |
- |
TK00577-0 |
TK00997-0 |
- |
|
45mm |
1.771 |
- |
TK00415-0 |
- |
- |
|
46mm |
1.811 |
- |
TK00416-0 |
- |
- |
|
1-13/16" |
1.812 |
- |
TK00578-0 |
TK00998-0 |
- |
|
47mm |
1.850 |
- |
TK00417-0 |
- |
- |
|
1-7/8" |
1.875 |
- |
TK00579-0 |
TK00999-0 |
- |
|
48mm |
1.889 |
- |
TK00418-0 |
- |
- |
|
49mm |
1.929 |
- |
TK00419-0 |
- |
- |
|
1-15/16" |
1.937 |
- |
TK00580-0 |
TK01000-0 |
- |
|
50mm |
1.968 |
- |
TK00420-0 |
- |
- |
|
2" |
2.000 |
- |
TK00581-0 |
TK01001-0 |
- |
|
51mm |
2.007 |
- |
TK00442-0 |
- |
- |
|
52mm |
2.047 |
- |
TK00443-0 |
- |
- |
|
2-1/16" |
2.062 |
- |
TK00644-0 |
TK01002-0 |
- |
|
53mm |
2.086 |
- |
TK00444-0 |
- |
- |
|
2-1/8" |
2.125 |
- |
TK00645-0 |
- |
- |
|
54mm |
2.125 |
- |
TK00445-0 |
- |
- |
|
55mm |
2.165 |
- |
TK00446-0 |
- |
- |
|
2-3/16" |
2.187 |
- |
TK00646-0 |
- |
- |
|
56mm |
2.204 |
- |
TK00447-0 |
- |
- |
|
57mm |
2.244 |
- |
TK00448-0 |
- |
- |
|
2-1/4" |
2.250 |
- |
TK00647-0 |
- |
- |
|
58mm |
2.283 |
- |
TK00449-0 |
- |
- |
|
2-5/16" |
2.312 |
- |
TK00648-0 |
- |
- |
|
59mm |
2.322 |
- |
TK00450-0 |
- |
- |
|
60mm |
2.362 |
- |
TK00451-0 |
- |
- |
|
2-3/8" |
2.375 |
- |
TK00649-0 |
- |
- |
|
2-7/16" |
2.437 |
- |
TK00650-0 |
- |
- |
|
2-1/2" |
2.500 |
- |
TK00651-0 |
- |
- |
|
2-9/16" |
2.562 |
- |
TK00652-0 |
- |
- |
| Availability | In Stock |
|---|---|
| Manufacturer | NITTO KOHKI |
| Manufacturer Sku | TK00571-0 |
