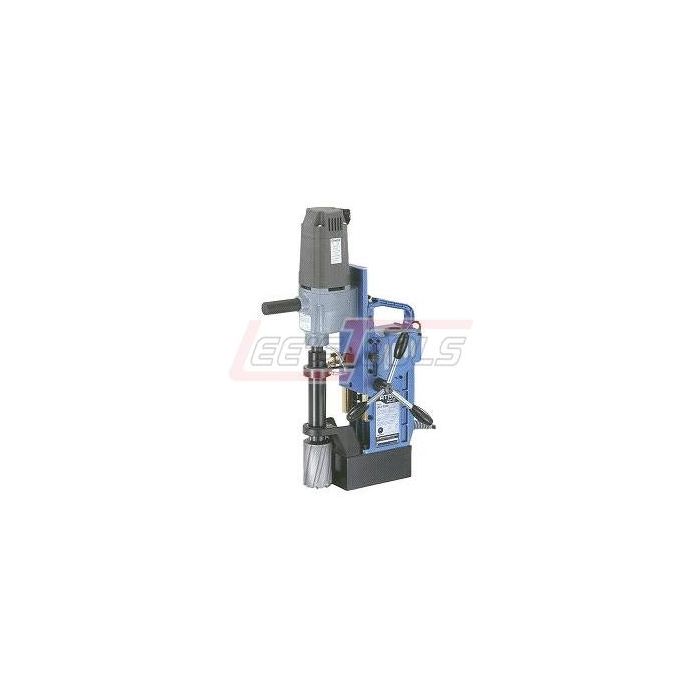

NITTO KOHKI UOJ-5500 UOJ-5500 2-3/16' MANUAL DRILL
$1,199.00
In stock
SKU
1034695
ATRA ACE Manual Feed
MAGNETIC DRILLS – MANUAL
Nitto-Kohki’s Atra Ace boosts productivity in the hole
drilling industry.
Features
As the drilling load increases, the load indicator will
change in color from green to orange to red. In addition, if excessive feeding
force is applied, the load indicator will rapidly blink red and the rotation of
the drill motor will slow down and temporarily stop. If the load is released
while the load indicator is blinking red, the drill motor will resume its
rotation.
Specifications
·
2-3/16" x 3" hole capacity
|
Power Source (Single Phase) |
110-120 V AC 50/60Hz |
|
|
Electric Drill |
Rated Power Consumption (W) |
1,150 |
|
Rated Current (A) |
10.8 |
|
|
No Load Speed (rpm) |
350/650 |
|
|
Magnet Power Consumption (W) |
50 |
|
|
Capacity |
Hole Diameter |
2-3/16" max |
|
Depth of Cut |
3" max. |
|
|
Twist Drill Capacity |
N/A |
|
|
Magnet Holding Power (lbs.) |
2,249 |
|
|
Magnet Dimensions (inch) |
3-3/8 “ X 6-11/16” |
|
|
Weight (lbs.) |
40 |
|
Accessories Included
·
UEA0850-0 pilot pin 5/16" x 2" DOC
·
3 mm allen wrench
·
5 mm allen wrench
·
8 mm x 10 mm combination spanner
·
Motor side handle
·
Feed handles (3 each)
·
Chip guard assembly
·
Safety chain
·
Molded plastic carrying case
·
Sample Cutting Fluid
| Availability | In Stock |
|---|---|
| Manufacturer | NITTO KOHKI |
| Manufacturer Sku | UOJ-5500 |
