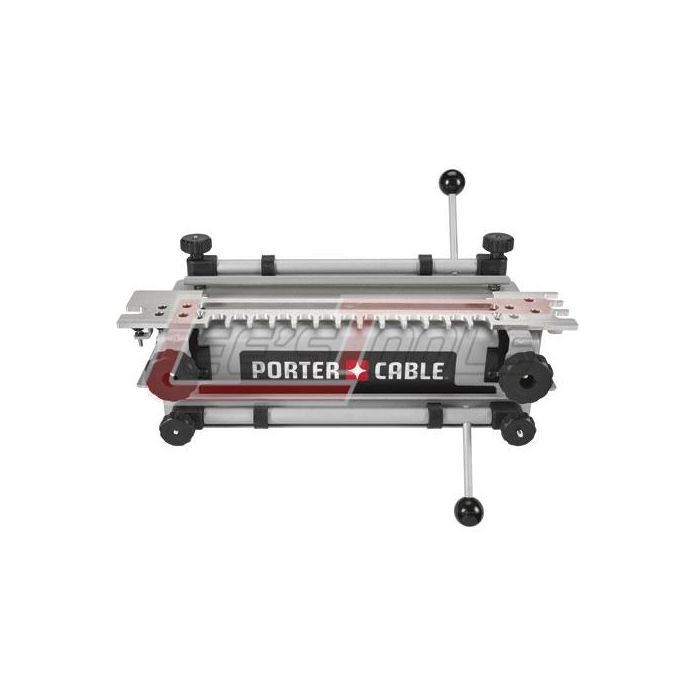

PORTER CABLE 4210 12" DOVETAIL JIG

12" DOVETAIL JIG

Includes:

·         Jig Base, Template - Model 4211, Router Bit - Model 43776PC, Template Guide - Model 42040, Lock Nut - Model 42237, Instruction manual, Wrench.

Features:

·         Includes 4211 template for half-blind, rabbeted half-blind and sliding dovetails

·         Template alignment lines and router bit depth gauges allow for quick, easy set-up

·         Router bit depth gauges allow user to quickly and accurately set the depth without taking measurements

·         On-board instructions provide clear user guidance for the various applications

·         Machined aluminum template provides superior cutting accuracy and long term durability

·         Durable, single-piece steel base design requires no assembly and allows for clamping or bolting directly to the work bench

·         Accommodates stock from 1/4" to 1-1/8" thick

·         Heavy-duty cam-type clamps with sandpaper-backed locking bars provide firm grip of wood

·         Additional templates (4213 and 4215) are available to create through dovetails, box joints, and miniature dovetails

·         Includes Half-Blind/Sliding Dovetail Template (Model 4211), Router Bit (Model 43776PC), Template Guides (Model 42040), Lock Nut (Model 42237), Wrench, Instruction Manual
