PORTER CABLE 59381 HINGE BUTT TEMPLET KIT

HINGE BUTT TEMPLATE KIT

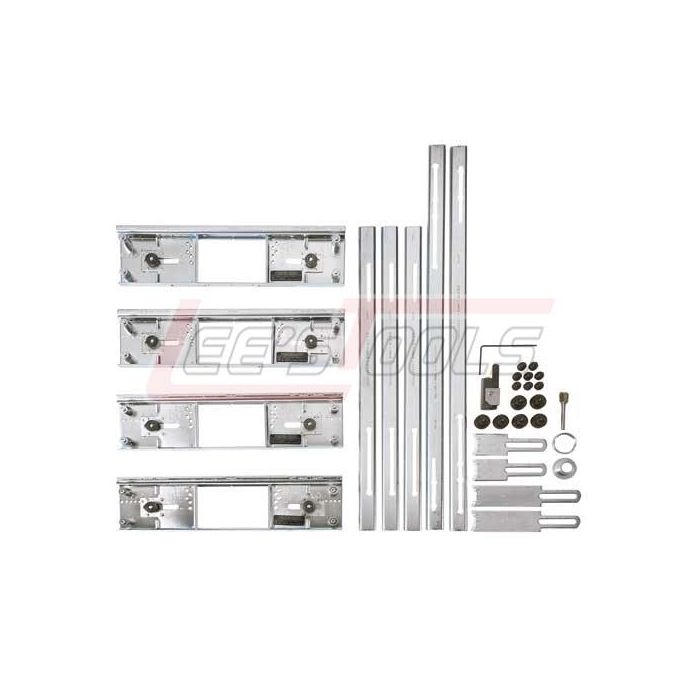

Includes:

·         (4) metal hinge templates, (3) short steel rails, (2) long steel rails, Carbide-tipped router bit, Template Guide, Lock Nut, Corner Chisel, (2) Pairs of end gages, (8) Small thumb screws, (6) large thumb screws, Hex key, Instruction sheet, Carrying case.

Features:

·         Offers a quick, simple and accurate solution when hanging multiple doors

·         Provides the capacity to hang both 3 and 4 hinge doors

·         3 hinge template set up enables the routing of hinges on doors and frames between 6' and 7' in height

·         4 hinge template set up enables the routing of hinges on doors and frames between 7' and 8' in height

·         Accommodates hinge sizes from 3" to 6", in 1/2" increments

·         Accommodates doors of various thickness: 1-3/8", 1-3/4", 2", 2-1/4", and 2-1/2"

·         Corner chisel accommodates square hinge corners

·         End gages enable the simple setting of the distance from template to top and bottom of door

·         Carbide-tipped router bit and template guide included for 1/4" radius hinges

·         5/8" and 5/16" radius hinge corners can be accommodated with the use of bits and template guides (sold separately)

·         All metal construction provides long term durability

Specifications:
