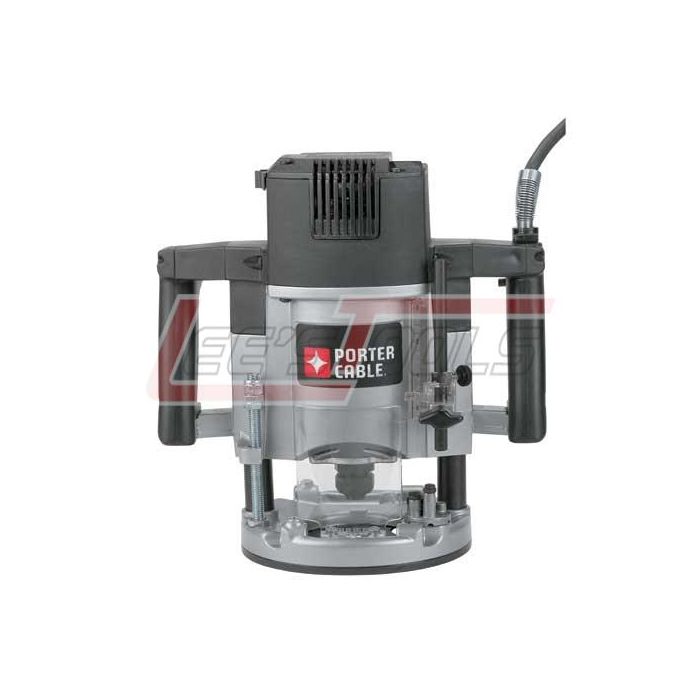

PORTER CABLE 7539 V-S 3 1/4 H-P PLUNGE
3-1/4 HP (MAXIMUM MOTOR HP) FIVE-SPEED PLUNGE ROUTER
Includes:
·
Router Motor, Plunge Base, 1/2" collet, Collet
wrench, Operating manual.
Features:
·
15 Amp motor provides the power and durability
necessary for the toughest applications
·
Versatile, electronic five-speed motor with
10,000, 13,000, 16,000, 19,000, and 21,000 rpm settings accommodates various
router bit cutting diameters and applications
·
Soft-start feature reduces torque at start-up and
motor maintains constant speed under load
·
Auto-release collet system allows for easy bit
removal after use
·
Depth rod with 6-position adjustable turret
enables stepped or repeated plunge cuts
·
3" Plunge Range
·
Precision machined aluminum motor housing and
base
·
Dust-sealed switch and sealed ball bearing
construction enhance tool durability
·
Handle incorporates trigger switch with lock-on
feature
·
Large handles enhance user control
Specifications:
|
Power: |
120 VAC, 60 HZ |
|
Horsepower: |
3-1/4 HP |
|
Amps: |
15 Amps |
|
No Load Speed: |
Soft starting 5 speed at 10,000, 13,000, 16,000, 19,000, and 21,000
rpm |
|
Speed: |
rpm |
|
Motor Diameter: |
-" |
|
Collets: |
1/2 " |
|
Base: |
7" Round |
|
Switch: |
Trigger |
|
Length: |
11.5 " |
|
Width: |
7 " |
|
Height: |
13.13 " |
|
Weight: |
17.25 lbs |
|
Shipping Weight: |
21 lbs |
| Availability | Out of Stock |
|---|---|
| Manufacturer | PORTER CABLE |
| Manufacturer Sku | 7539 |
