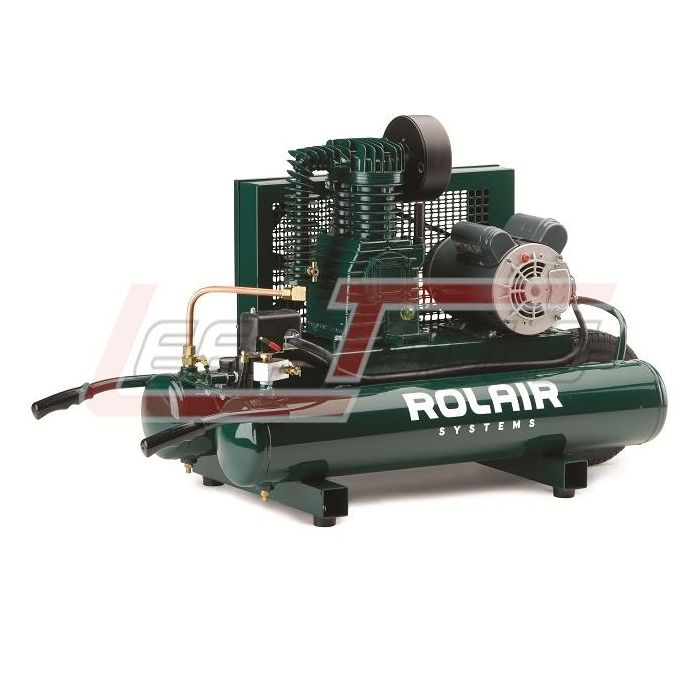

ROLAIR 5715K17-0001 Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders1.5 HP, 7.3 CFM, 1755 RPM

Wheel Electric Compressor

Features

Pump description

Heavy-Duty, Single Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Hardened Steel Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 11" Flywheel, Oil Sight Gauge

Motor description

1.5 HP, 1755 RPM, Open Drip Proof, 115/230V – 60 HZ, Ball Bearings, Overload Protection w/Manual Reset

 Standard equipment

Pressure Gauge, 0-200 in 5 lb. Graduations, Square D Pressure Switch w/Unloader, Accessory Support Clip, Intake Filter w/Silencer & Replaceable Element, Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

Optional equipment

Filter-Regulator-Lubricator Sets, Dual Voltage Switch, Fully Pneumatic Wheels, Constant Speed Operation, Dual Control Operation

Specifications

HORSE POWER

·         1.5 HP

CFM DISPLACED @ 90 PSI

·         10.1 CFM

CFM DELIVERED @ 90 PSI

·         7.3 CFM

MOTOR RPM

·         1755 RPM

PUMP RPM

·         780 RPM

PUMP OIL CAPACITY

·         34 Ounces

REED VALVE SYSTEM

·         Yes (Standard)

AUTOMOTIVE STYLE INSERTS

·         Yes (Standard)

WHEELS

·         1 Flat Free Tire

TANK CAPACITY

·         9 Gallons

L x W x H

·         46 x 19 x 28

DECIBEL RATING :

·         Unavailable

SHIPPING WEIGHT

·         174 lbs.
