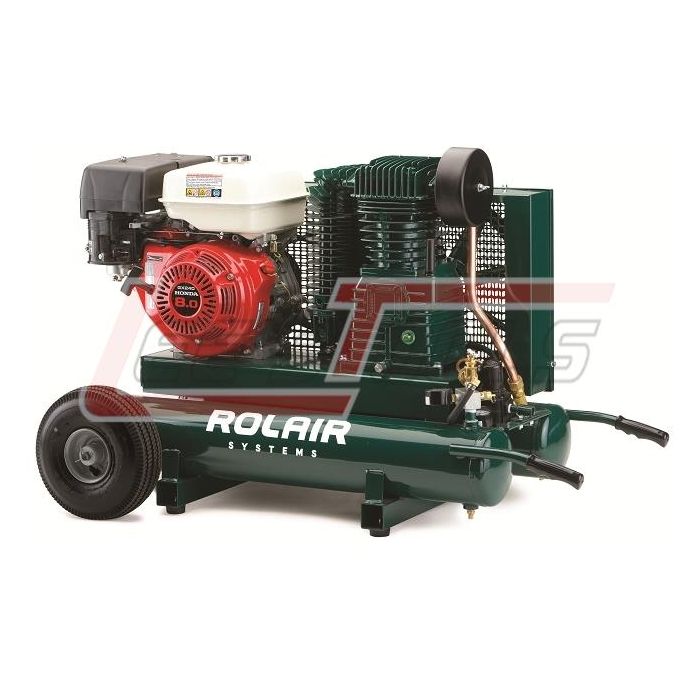

ROLAIR 7722HK28-0001 Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders,9 HP, 17 CFM, Honda 4 Cycle

Wheel Gas Compressor

Features

Pump description

Heavy-Duty, Two Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Cast Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight Gauge

Motor description

8 HP, Honda 4 Cycle, Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve, Overheard Valves, Retractable Starter, On/Off Switch, Splash Lubricated, Low Oil Shutdown

 Standard equipment

Pressure Gauge, 0-300 in 5 lb. Graduations, Automatic Pilot Valve Operation, Industrial Flexible Discharge Hose, Automatic Idle Control for Economy and Long Service Life, Intake Filter w/Silencer & Replaceable Element, Schmidt Belt Tightening Device, Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve

Optional Equipment

Filter-Regulator-Lubricator Sets,Electric Start

Specifications

HORSE POWER

·         8 or 9 HP

CFM DISPLACED @ 90 PSI

·         20.3 CFM

CFM DELIVERED @ 90 PSI

·         17 CFM

PUMP RPM

·         1100 RPM

PUMP OIL CAPACITY

·         61 Ounces

REED VALVE SYSTEM

·         Yes (Standard)

AUTOMOTIVE STYLE INSERTS

·         Yes (Standard)

BELT TIGHTENING DEVICE

·         Yes (Standard)

WHEELS

·         2 Fully Pneumatic w/Sealant

TANK CAPACITY

·         9 Gallons

L x W x H

·         46 x 28 x 30

DECIBEL RATING

·         Unavailable

SHIPPING WEIGHT

·         276 lbs.
