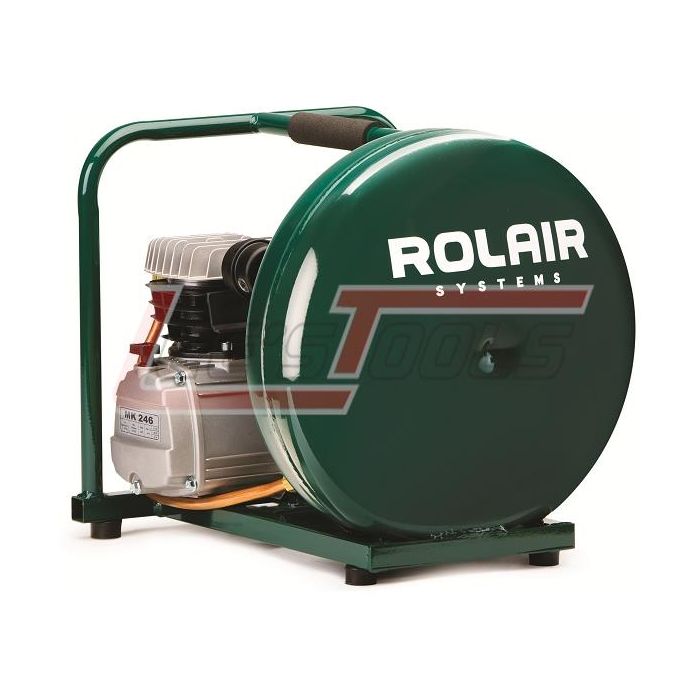

ROLAIR D2002HPV Heavy-Duty, Cast-Iron Cylinder, Single Stage 2 HP, 3400 RPM

Hand Carry Compressor

Features

Pump description

ROLAIR Quality, Heavy-Duty, Cast-Iron Cylinder, Single Stage, Ball Bearings, Metal Filter/Silencer with Replaceable Element, Stainless Steel Reed Valves, and Splash Lubrication To Ensure Longer Pump Life

Motor description

2 HP, 3400 RPM, S1-Rated for Continuous Duty, Overload Protection with Manual Reset, 115 Volt, 60 Hz, Heavy-Duty, Industrial Grade with Ball Bearings for Greater Durability

 Standard equipment

100% Duty-Cycle Motor, Square D Pressure Switch with On/Off Lever, Regulator w/Air Line Pressure Gauge, Universal Quick Disconnect w/Plug, 12 oz. Crankcase Pre-filled with Oil, 110/135 PSI Operating Pressure, Factory Tested, Safety Relief Valve

Specifications

HORSE POWER

·         2 HP

CFM DISPLACED @ 90 PSI

·         7.8 CFM

CFM DELIVERED @40/90 PSI

·         5.40/4.10 CFM

PUMP/MOTOR RPM

·         3400 RPM

OVERLOAD PROTECTION

·         Yes (Manual Reset Standard)

LUBRICATION TYPE

·         Splash Lubrication

PUMP OIL CAPACITY

·         12 Ounces

REED VALVE SYSTEM

·         Yes (Standard)

NUMBER OF CYLINDERS

·         1

TANK CAPACITY

·         4.5 Gallons

L x W x H

·         18 x 16 x 17

DECIBEL RATING

·         80 dBA

SHIPPING WEIGHT

·         62 lbs.
