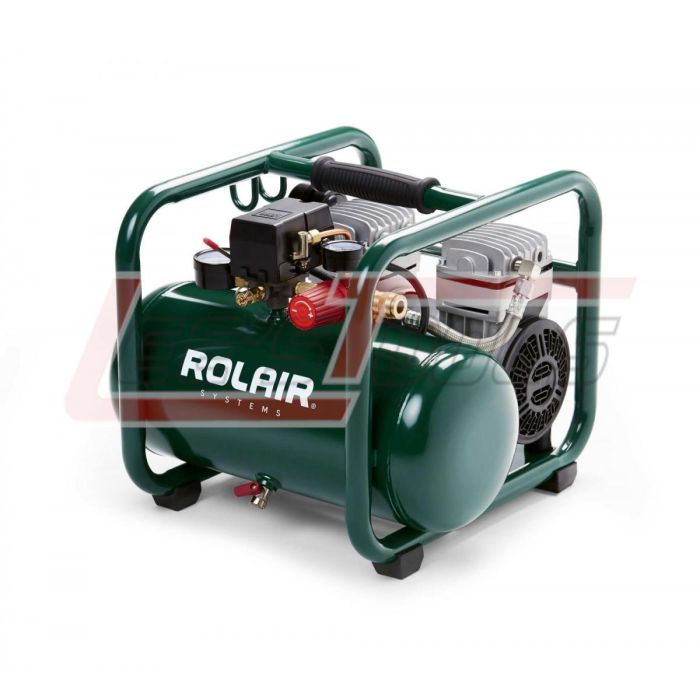

ROLAIR JC10PLUS Single Stage, Oilless, Two Cylinder 1 HP, 2.35 CFM 1725 RPM

Hand Carry Compressor

Features

Pump description

·         Super Quiet, ROLAIR Quality, Single Stage, Oilless, Two Cylinder, Ball Bearings,Cast-Aluminum Cylinder, Stainless-Steel Reed Valves, Low RPM for Quiet Operation—ONLY 60 dB!!

 Motor description

·         1 HP, 1725 RPM, Low-Amp Draw, Automatic Overload Protection, 115 Volt, 60 Hz, Heavy-Duty/Industrial-Grade with Ball Bearings for Greater Durability.

 Standard equipment

·         Start/Stop Pressure Switch, Roll-Cage Design to Protect Pump/Motor, Safety Relief Valve, Intake Filter/Silencer, 8 Amp Motor, Pressure Relief Solenoid Valve, Decibel Level - Only 60 dB!!, Air Line Regulator and Pressure Gauge

Specifications

Horse power :

·         1 hp

cfm displaced @ 90 psi :

·         5.3 cfm

cfm delivered @40/90 psi :

·         3.80/2.35 cfm

pump/motor rpm :

·         1725 rpm

Overload protection :

·         yes (automatic)

Lubrication type :

·         oil-less

Pump oil capacity :

·         n/a

Reed valve system :

·         yes (standard)

Number of cylinders :

·         2

Tank capacity :

·         2.5 gallons

·         l x w x h :

·         17 x 16 x 15

Decibel rating:

·         60 dba

Shipping weight :

·         39 lbs.
