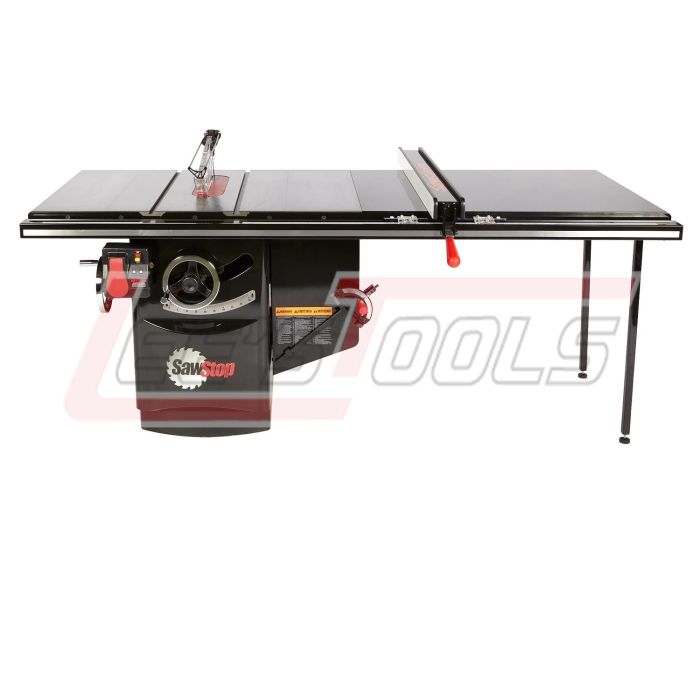

SAWSTOP ICS73480-52 7.5HP, 3ph, 480v Industrial Cabinet Saw with 52” Industrial T-Glide fence system

Overall saw dimensions:

 44” w x 34” d x 34’ h

69 1/4” w x 36 1/2” d x 34” h (w/ optional fence & 36” rails)

85 1/4” w x 36 1/2” d x 34” h (w/ optional fence & 52” rails)

10” Cabinet Saw with Industrial T

Glide

ICS31230-36

3HP, 1PH, 230V 60HZ. 36” Industrial T-Glide

ICS31230-52

3 HP, 1PH, 230V 60HZ. 52” Industrial T-Glide

ICS51230-36

5 HP, 1PH, 230V 60HZ. 36” Industrial T-Glide

ICS51230-52

5 HP, 1PH, 230V 60HZ. 52” Industrial T-Glide

ICS53230-36

5 HP, 3PH, 230V 60HZ. 36” Industrial T-Glide

ICS53230-52

5 HP, 3PH, 230V 60HZ. 52” Industrial T-Glide

ICS53480-36

5 HP, 3PH, 480V 60HZ. 36” Industrial T-Glide

ICS53480-52

5 HP, 3PH, 4800V 60HZ. 52” Industrial T-Glide

ICS73230-36

7.5 HP, 3PH, 230V 60HZ. 36” Industrial T-Glide

ICS73230-52

7.5 HP, 3PH, 230V 60HZ. 52” Industrial T-Glide

ICS73480-36

7.5 HP, 3PH, 480V 60HZ. 36” Industrial T-Glide

ICS73480-52

7.5 HP, 3PH, 480V 60HZ. 52” Industrial T-Glide

Saw body

 Motor: (all 60Hz, TEFC):

ICS31230:

3 hp 1 phase 230 V 13 A

ICS51230:

 5 hp 1 phase 230 V 20.5 A (optional)

ICS53230:

 5 hp 3 phase 230 V 13 A (optional)

ICS53480:

5 hp 3 phase 480 V 6.5 A (optional)

ICS73230:

7.5 hp 3 phase 230 V 17.8 A (optional)

ICS73480:

7.5 hp 3 phase 480 V 17.8 A (optional)

Cabinet footprint:

 20” w x 25” d

Cast iron table:

24” w x 30” d, 44” w x 30” d (w/ extension wings)

Extension wing:

10” w x 30” d

Extension table (optional):

24” w x 30” d (36” rails), 40” w x 30” d (52” rails)

Weights (may vary with motor):

530 lbs (table saw only)

635 lbs (with optional fence, 36” rails & table)

685 lbs (with optional fence, 52” rails & table)

Shipping weight (approx.):

640 lbs (table saw only)

Blade:

60-tooth, professional grade, 5/8” arbor

Blade diameter:

10”

Blade tilt:

Left

Blade kerf:

 3mm

Blade plate thickness:

2mm

Max. depth of cut, blade at 0º:

3 1/8”

Max. depth of cut, blade at 45º:

2 1/4”

Max. rip, right of blade:

 52 1/2” (with optional 52” rails)   36 1/2” (with optional 36” rails)

Max. rip, left of blade:

12 1/2”

Dado diameter:

8” (requires a separate brake cartridge)

Dado max. width:

13/16”

Arbor diameter at blade:

 5/8”

Main bearing size:

62mm OD x 30mm ID

Second bearing size:

 52mm OD x 25mm ID

Table in front of blade (max. elevation):

11”

Table behind blade (max. elevation):

 9 3/4”

Arbor Runout:

 0.001” Maximum allowable runout

Blade lateral movement over full elevation range:

0.006”Maximum

Table flatness measured diagonally:

0.010”Maximum gap

Overall table and extension wing flatness:

0.025”Maximum gap

Blade alignment with miter slot:

 0.010” Maximum displacement

Deviation of miter gauge indexing stops from actual:

±0.25º

Alignment between splitter and blade:

 0.010”Maximum difference

Miter slots:

T-shaped, 3/4” at top, 1” at bottom, 3/8” deep

11 1/8” center-to-center

5 1/2” (arbor flange to center of right slot)

Dust collection port diameter:

4”

Riving knife / splitter thickness:

2.33mm

Blade guard:

polycarbonate, extends only 5/8” to right of blade

Insert:

zero clearance, phenolic core, melamine surfaces

Hand wheels:

8” diameter, cast iron with chrome handle

Belts:

2 V-ribbed belts
