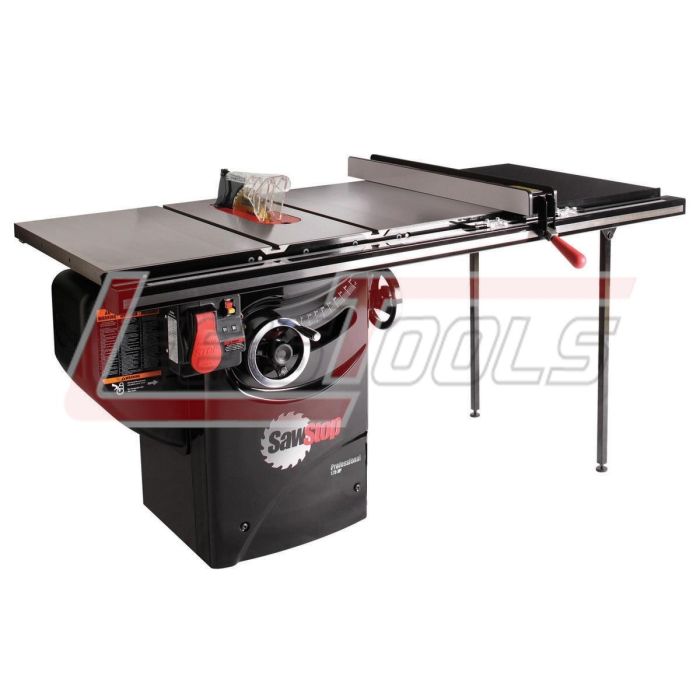

SAWSTOP PCS175-TGP236 1.75HP Professional Cabinet Saw with 36” Professional T-Glide fence system

Overall saw dimensions:

PCS175-PFA30

61 1/4” x 31 1/8” d x 34”h (with Premium Fence Assembly & 30” rails)

PCS175-TGP236

69 1/8”w x 33” d x 34” h (with T-Glide Fence System & 36” rails)

PCS175-TGP252

85 1/4” w x 33” d x 34” h (with T-Glide Fence System & 52” rails)

All Professional Cabinet Saws

Cabinet footprint:

19 3/8” w x 19 3/8” d

Cast iron table:

20” w x 27” d, 44” w x 27” d (w/ extension wings)

Extension wing:

12” w x 27” d

Extension table (optional):

23 3/4” w x 27” d (36” rails), 40 1/8” w x 27” d (52” rails)

Blade:

40-tooth, professional grade, 5/8” arbor

Blade diameter:

10”

Blade tilt:

Left

Blade kerf:

0.118” (3mm)

Blade plate thickness:

0.078” (2mm)

Max. depth of cut, blade at 0º:

3 1/8”

Max. depth of cut, blade at 45º:

2 1/4”

Max. rip, left of blade:

12”

Dado diameter:

8” (requires a separate brake cartridge and table insert)

Dado max. width:

13/16”

Arbor diameter at blade:

5/8”

Main bearing size:

62mm OD x 30mm ID

Second bearing size:

52mm OD x 25mm ID

Table in front of blade (max. elevation):

10 1/4”

Table behind blade (max. elevation):

7 1/2”

Arbor runout:

0.001” Maximum allowable runout

Blade lateral movement over full elevation range:

0.006” Maximum

Table flatness measured diagonally:

0.010” Maximum gap

Overall table and extension wing flatness:

0.025” Maximum gap

Blade alignment with miter slot:

0.010” Maximum displacement

Deviation of miter gauge indexing stops from actual:

±0.25º

Alignment between spreader and blade:

0.010” Maximum difference

Miter slots:

T-shaped, 3/4” at top, 1” at bottom, 3/8” deep

Dust collection port diameter:

4”

Riving knife / splitter thickness:

0.078” (2mm)

Blade guard:

polycarbonate, extends only 5/8” to right of blade

Insert:

zero clearance, steel core, ABS surfaces

Hand wheels:

7” diameter, cast iron with chrome handle

Belts:

2 V-ribbed belts – arbor belt is static dissipative
