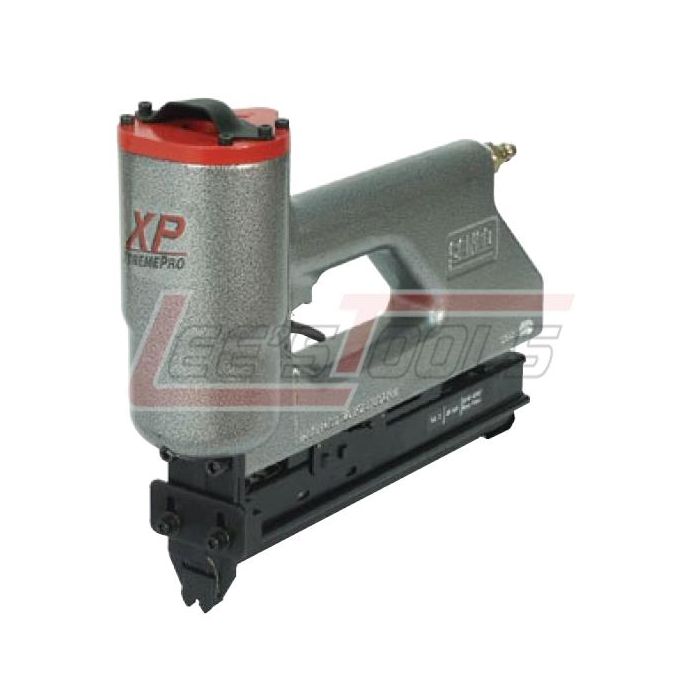

SENCO 220101N SC1XP RSTR TRIG FIRE-MITER JOINT
$615.82
Out of stock
SKU
1097026
25 Ga. 7/16" Crown, 9/16" Senclamp® Fastener
This unique system clamps material together, holding and
supporting it for the life of the product you manufacture.
·
Senclamp fasteners pull the joint together during
driving for a tight, permanent fit
·
Eliminate milling, doweling, clamping, screwing,
and other time-consuming, cost adding operations
·
The Senclamp high-carbon steel fastener derives
added strength from its special webbed design
·
5-year limited warranty
Specifications
|
Item #: |
220101N |
|
Firing Mode: |
Sequential Actuation Trigger |
|
Reg. Operating Pressure: |
80-110 psi (5.44-7.48 bar) |
|
Air Consumption (60 cycles per min.): |
(60 cycles per min.): 3.8 scfm |
|
Air Inlet: |
3/8" NPT |
|
Tool Weight: |
6.3 lbs. (2.8kg) |
|
Height: |
9.8" (249mm) |
|
Length: |
12.7" (322mm) |
|
Fastener Capacity: |
120 |
Compatible Fasteners
Choosing the right fastener is key to a good finish and
quality job.
·
Type: Y05, Y07, Y09
·
Gauge: 25
·
Range: 5/16" - 9/16"
·
Collation:
|
Length |
Item Code |
Carton Count |
Finish |
|
5/16 |
Y05BFA |
3.0M
|
Bright |
|
7/16 |
YO7BFA |
3.0M |
Bright |
|
9/16 |
Y09BFAN |
3.0M |
Bright |
| Availability | Out of Stock |
|---|---|
| Manufacturer | SENCO |
| Manufacturer Sku | 220101N |
