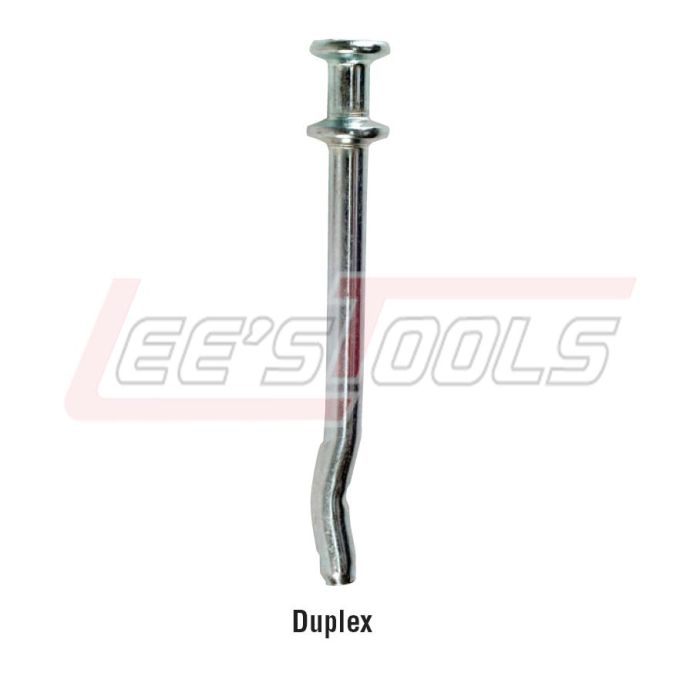

SIMPSON STRONG-TIE CD25234D 1/4IN DUPLEX CRIMP DRIVE

Crimp Multi-Purpose Anchors

The Crimp anchor is a multi-purpose expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary setting procedure.

Features:

·         Available in carbon steel in four head styles

·         Designed to handle different applications that include fastening wood or light-gauge steel, attaching concrete formwork, hanging overhead support for sprinkler pipes or suspended ceiling panels

·         Curved design helps speed up anchor installation and reduce the overall cost

Warning: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only. Finish: Zinc plated and mechanically galvanized

Codes: Factory Mutual 3031136 for the 3/8" rod coupler version

Installation:

·         Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.

·         Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.

·         Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.

FOR MOR3E INFORMATION ON Crimp Anchor Product Data SPECIFICATIONS  SEE DETAILE IMAGES.
