SIMPSON STRONG-TIE ETB10 NYLON BRUSH 1-1/4IN DIA X 29IN OA LENGTH
$7.95
In stock
SKU
2008959
Adhesive Accessories
Hole Cleaning
Brushes

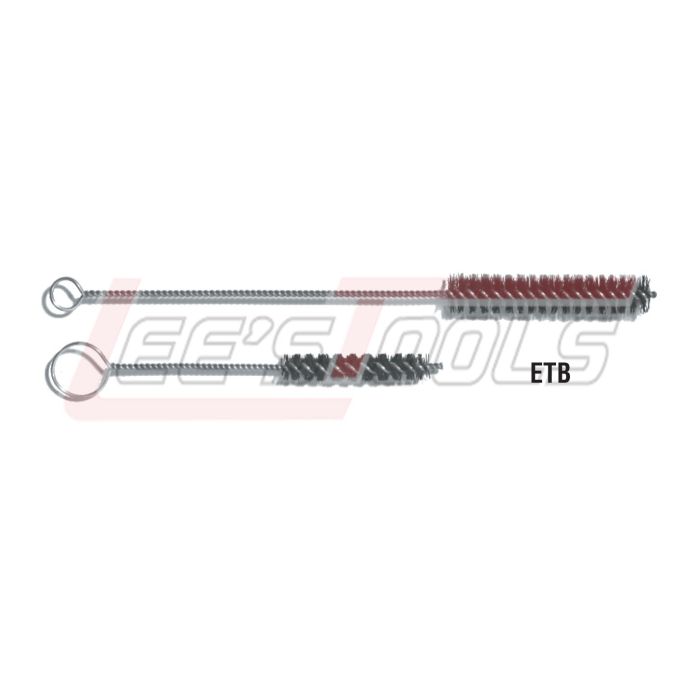

Brushes are used for cleaning drilled holes prior to
adhesive anchor installation. Brushes have a twisted wire handle with nylon
bristles.
|
Description |
Model No. |
For Anchor/Rebar Diameter (in.) |
For Hole Diameter (in.) |
Carton Qty. |
|
½" dia x 3" brush (8" total length) |
ETB4 |
1/4 – 5/16 |
3/8 – 7/16 |
24 |
|
3/4" x 4" brush (16" total length) |
ETB6 |
3/8 – 5/8 |
1/2 – 3/4 |
24 |
|
1" x 4" brush (16" total
length) |
ETB8 |
3/4 |
13/16 – 7/8 |
24 |
|
1" x 4" brush (24" total length) |
ETB8L |
3/4 |
13/16 – 7/8 |
24 |
|
1 1/4" x 4" brush (29" total length) |
ETB10 |
7/8 – 1 |
1 – 1 1/8 |
24 |
|
1 5/8" x 6" brush (34" total length) |
ETB12 |
1 1/4 |
1 3/16–1 3/8 |
24 |
Adhesive Shear Tubes
Used in conjunction with anchoring adhesive and screen
tubes, adhesive shear tubes transfer anchor shear loads over a larger area,
reducing localized crushing in unreinforced masonry installations. Required for
thru bolt applications per ICC-ES's unreinforced masonry anchorage
"Configuration C" detail. For detailed installation instructions refer to the
appropriate adhesive anchor ICC-ES report.
Material: Steel
Finish:
Zinc-plated
|
Description (in.) |
Model No. |
For use with Simpson Screen
Model No.1 |
Drill Bit Dia. (in.) |
Threaded Rod Diameter (in.) |
Carton Qty. |
|
13/16 x 8 |
AST800 |
ETS758, ATS758 |
1 |
5/8 |
1 |
Screens sold separately. Not for use with Simpson Strong-Tie
#ETS758P or ATS758P plastic Opti-Mesh screen tubes.
| Availability | In Stock |
|---|---|
| Manufacturer | SIMPSON STRONG-TIE |
| Manufacturer Sku | ETB10 |
