SIMPSON STRONG-TIE ETILV22 EPOXY TIE INJECTION LOW VISCOSITY "CRACK REPAIR"

ETI Injection Epoxy

ETI injection epoxies are two-component, high-solids formulations that are dispensed through a static mixing nozzle using a manual, battery or pneumatic dispensing tool. ETI injection epoxies are specially designed formulations for the injection of cracks in concrete. Properly installed, they provide a repair that is both waterproof and high strength (structural).

Features:

·         Chemically bonds with the concrete to provide a structural repair

·         Seals the crack from moisture, protecting rebar in the concrete from corrosion and flooring from moisture damage

·         All viscosities formulated for maximum penetration under pressure

·         Side-by-side cartridge dispensing provides reliable mixing and ratio control when used with the Simpson Strong-Tie® Opti-Mix® static mixing nozzle (included)

·         Eliminates the need for expensive bulk dispensing equipment

·         Formulations can be dispensed using a manual or pneumatic dispensing tool (ETI-LV  requires the use of the Opti-Mix nozzle, model EMNO22, which is included with the cartridge)

·         Final color of product: ETI-SLV: Dark Purple/Black; ETI-LV: Amber; ETI-GV: Gray

·         Suitable for pressure injection or gravity-feed applications

·         Non-shrink material resistant to oils, salts and mild chemicals

Applications:

ETI-SLV Super-Low Viscosity epoxy

·         Meets the requirements of ASTM C881, Type I and IV, Grade 1, Class B

·         Super-low viscosity (350 cps) for repair of hairline cracks and those up to 1/4" in width

·         Penetrates the smallest cracks.

·         Suitable for structural repairs.

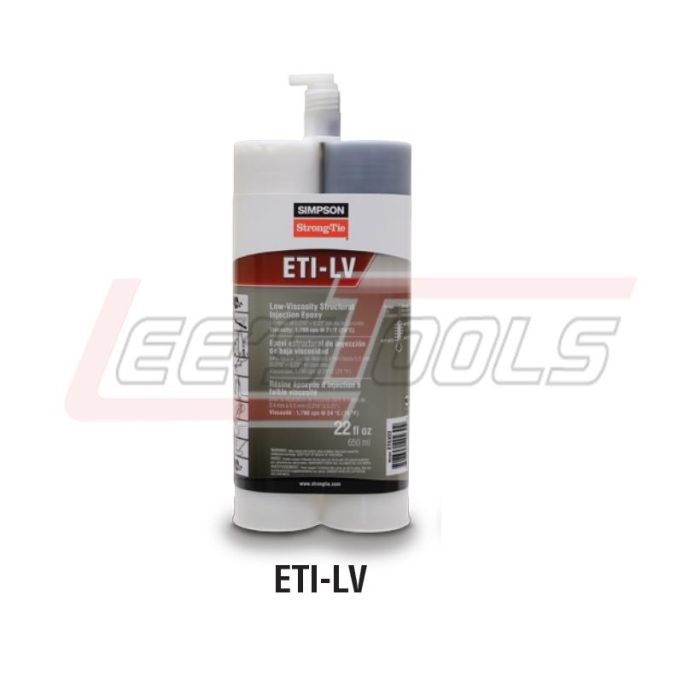

ETI-LV Low-Viscosity Injection Epoxy

·         Meets the requirements of ASTM C881, Type I, IV and V, Grade 1, Classes B and C

·         For repair of fine to medium-width cracks that are 1/64" – 1/4" in width

·         Low surface tension allows the material to effectively penetrate narrow cracks

·         Suitable for structural repairs

·         Approved under NSF/ANSI standard 61

ETI-GV Gel-Viscosity Injection Epoxy

·         Meets the requirements of ASTM C881, Type I and IV, Grade 3, Classes B and C

·         Gel viscosity epoxy for repair of medium cracks 3/32" – 1/4" in width

·         Decreases in viscosity under pressure for easier dispensing

·         Suitable for structural repairs

Application Considerations:

·         ETI injection epoxies are suitable for repairing non-moving cracks in concrete walls, floors, slabs, columns and beams.

·         ETI can be used to inject cracks in damp or wet conditions (nonseeping or non-leaking conditions only) with excellent results.

·         Apply to concrete 40°F or above. For best results, warm material to 60°F or above prior to application.

Shelf Life: 2 years in unopened cartridge

Storage Conditions: For best results, store between 45°–90°F

ETI Cartridge System
