SIMPSON STRONG-TIE GDP-150KT 1-1/2IN PIN 1000 PINS PLUS FUEL CELL
$0.00
Out of stock
SKU
2010761
GCN150 Gas-Actuated Concrete Nailer Accessories

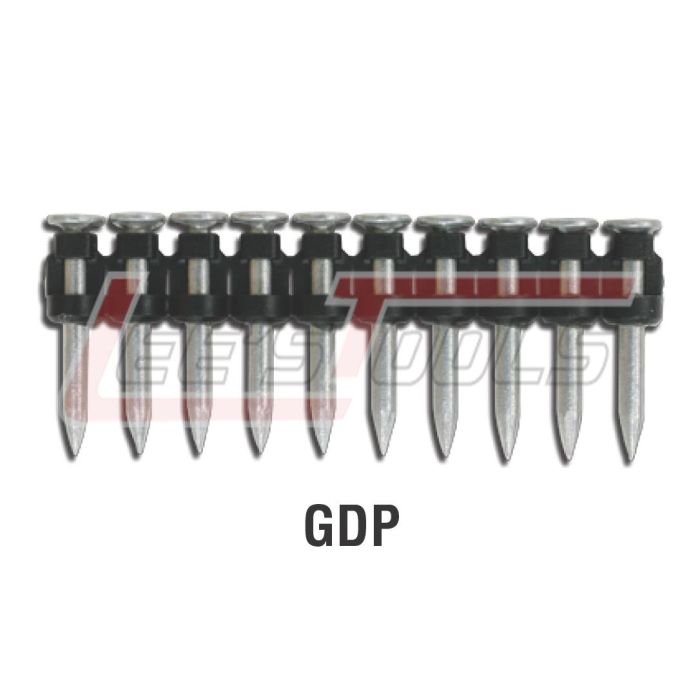

GDP Pins
GDP concrete pins are designed to work with the GCN150 and
GCNMEP (with magazine-attached) gas-actuated concrete nailers as well as with
most major-brand gas concrete-nailer tools. The patented 10-fastener strip is
designed with break-away plastic. The pins are designed for use in A36 and A572
steel, concrete and CMU block.
Codes: ICC-ES
ESR-2811; Florida FL15730; City of L.A. RR25837
.106 Diameter Shank
Drive Pins for the GCN150
|
Model No. |
Length (in.) |
Qty. Pins / Pack +1 Fuel Cell |
Packs/ Carton |
Compatible with these Tools |
|
GDP-50KT |
½ |
1,000 |
5 |
Simpson Strong-Tie GCN-MEP, GCN-MEPMAG, GCN150 Others: TF1100, C3 |
|
GDP-62KT |
5/8 |
1,000 |
5 |
|
|
GDP-75KT |
¾ |
1,000 |
5 |
|
|
GDP-100KT |
1 |
1,000 |
5 |
|
|
GDP-125KT |
1¼ |
1,000 |
5 |
|
|
GDP-150KT |
1½ |
1,000 |
5 |
GDPS Pins
The new GDPS pins are also designed to work in the GCN150
and GCN-MEPMAG gas-actuated nailer tools for installation into A36 and A572
structural steel. The step-shank pin, with a smaller-diameter tip, facilitates
easier penetration into the steel, while the larger diameter upper shank
provides more shear resistance and successful installation.
.118/.102 Diameter
Shank Drive Pins for the GCN150
|
Model No. |
Length (in.) |
Qty. Pins / Pack + 1 fuel cell |
Packs/Carton |
Compatible Tools |
|
|
Simpson Strong-Tie |
Others |
||||
|
GDPS-50KT |
1/2 |
1,000 |
5 |
GCN150 GCN-MEPMAG |
TF1100, C3 |
|
GDPS-62KT |
5/8 |
1,000 |
5 |
||
|
GDPS-75KT |
3/4 |
1,000 |
5 |
||
GWL-100 Lathing
Washer and GMR-1 Magnetic Ring
The new GWL-100 lathing washer is used with the GCN150 tool
and attaches lath to the wall surface for overlaying scratch coats, brown coats
and stucco. The washers are held onto the nose of the tool with the new GMR-1
magnetic ring and are attached to the substrate (including concrete and CMU)
with GDP pins, which fasten through the washer. No extra tools are needed to
install the magnetic ring to the nosepiece of the tool.
Lathing Washer and
Magnetic Ring
|
ModelNo. |
Description |
Pack Qty. |
Carton Qty. |
|
GWL-100 |
Lathing Washer, 1" Diameter |
1,000 |
5,000 |
|
GMR-1 |
Magnetic Ring for GCN150 |
10 |
900 |
Lathing Washer and Magnetic Rings are sold separately.
GCN150 Gas-Actuated
Concrete Nailer Accessories
Spiral Knurl Gas Pins
GDPSK gas pins are designed for attaching plywood and OSB
to cold-formed steel studs. The spiral knurl provides a positive lock and
resists back out. Installed with the GCN150 concrete nailer or GCN-MEPMAG, the
GDPSK-138 gas pin provided faster installation and set up times, which
contributes to lower labor costs. The hardened pins quickly and cleanly pierce
the cold-form steel and leave the pin head flush with the wood fixture. The 1
3/8" length pin can be used for 1/2"–3/4" thick plywood, and 14–22 gauge steel.
Spiral Knurl Gas
Pins for the GCN150
|
Model No. |
Length (in.) |
Qty. Pins / Pack + 1 fuel cell |
Packs/Carton |
Compatible with these Tools |
|
GDPSK-138KT |
1 3/8 |
1,000 |
5 |
Simpson Strong-Tie: GCN150, GCN-MEPMAG Others: TF1100, C3 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | SIMPSON STRONG-TIE |
| Manufacturer Sku | GDP-150KT |
