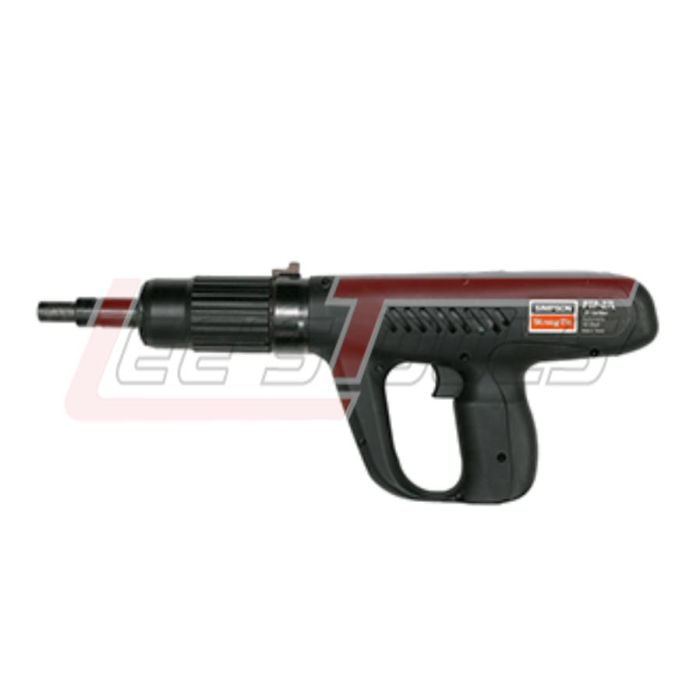

SIMPSON STRONG-TIE PTP-27L PTP LONG TOOL. N AMERICA SER # REQ

PTP-27L and PTP-27LMAGR Premium Tools

The PTP-27L and the PTP-27LMAGR are powder-actuated fastening tools designed to provide versatility and ease of use on the job site. Both tools deliver productive fastening with automatic piston reset, which enables the user to simply load and shoot. The PTP-27L is a single-shot tool with a longer barrel that can be easily affixed with a fastener magazine. The PTP-27LMAGR is a fully automatic tool with fastener magazine that can be quickly changed to a single-shot tool.

Features:

·         Adjustable power for fastening versatility: a 1–1 1/2 power level range from a single strip

·         Easy disassembly for cleaning and maintenance

·         No manual resetting of piston required

·         Operator comfort: cushioned gri Key Fastening Applications:

·         Sill plate installation

·         Washered-pin installation (PTP-27L only)

·         Insulation fastening (PTP-27L only)

·         Forming work

Specifications:

·         Fastener Length: PTP-27L: 1/2" – 2 1/2" (3" or 4" washered) PTP-27LMAGR: 5/8" – 2 7/8"

·         Fastener Type: .300" or 8mm diameter

·         Firing Action: PTP-27L: Automatic PTP-27LMAGR: Fully automatic

·         Load Caliber: .27 strip loads, brown through purple (Levels 2–6)

·         Length: 17 3/4" (PTP-27L), 19 1/2" (PTP-27LMAGR)

·         Weight: PTP-27L – 6.5 Ibs., PTP-27LMAGR – 8.8 lbs.

Available Kit Combinations:

·         PTP-27L: Single-shot configuration with accessories

·         PTP-LMAGR: Parts to convert PTP-27L into magazine configuration

·         PTP-27LMAGR: Magazine configuration with accessories

·         PTP-LCONKT: Parts to convert PTP-27LMAGR into a single-shot configuration

·         PTP-27LMAGRKT: Combination kit; includes tool and components for both single-shot and magazine configurations

Tool is Sold in a Rugged Tool Box Complete with:

·         Operator’s manual

·         Spall suppressor

·         Tools for disassembly

·         Safety glasses / ear plugs

·         Tool lubricant

·         Cleaning brushes

·         Operator’s exam and caution sign

·         Tool box also sold separately

·         Gloves

Complementary Products:

Extension pole tool for the PTP-27L available in 6' and 8' lengths

Common Repair Parts - PTP-27L

Common Repair Parts - PTP-27LMAGR
