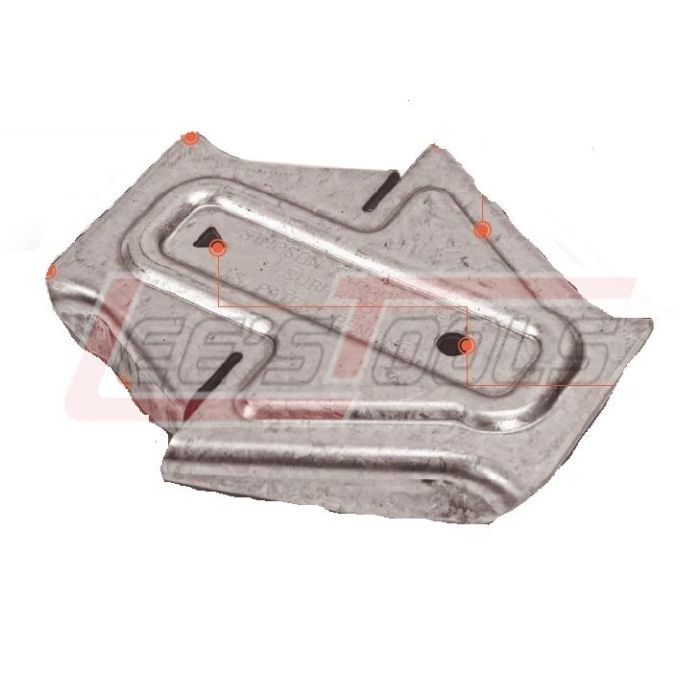

SIMPSON STRONG-TIE SUBH3.25-R150 STD DUTY BRIDGE CLIP 150 RETAIL PACK

FOR MORE INFORMATIONS ON PRODUCT SPECIFICATIONS

SEE DETAILED IMAGES

SUBH/MSUBH Wall Bridging Connectors

These innovative connectors can reduce labor cost and increase installation efficiency through patented design. The SUBH/MSUBH are the only bridging connectors fully tested as a system ensuring that published design capacities capture the influence of stud web depth and thickness.

FEATURES:

·         Installed easily by a single installer

·         Many applications require only one screw

·         Tested to include stud-web strength and stiffness in the tabulated design values

·         Design values ensure compliance with AISI S100 Sections D3.2.1 and D3. 3 for axially and laterally loaded studs

·         Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3 5/8" to 8"

·         Compact profile allows standard 1 5/8" studs to be sistered directly against adjacent studs

·         MSUBH accommodates back-to-back built-up members ranging from 33 mil (20 ga.) to 54 mil (16 ga.)

MATERIAL: SUBH3.25 – 43 mil (18 ga.) carbon steel; MSUBH3.25 – 68 mil (14 ga.) carbon steel

FINISH: Galvanized (G90)

CODES: IAPMO UES ER-124
