SIMPSON STRONG-TIE THD25300H TITEN HD 1/4 X 3

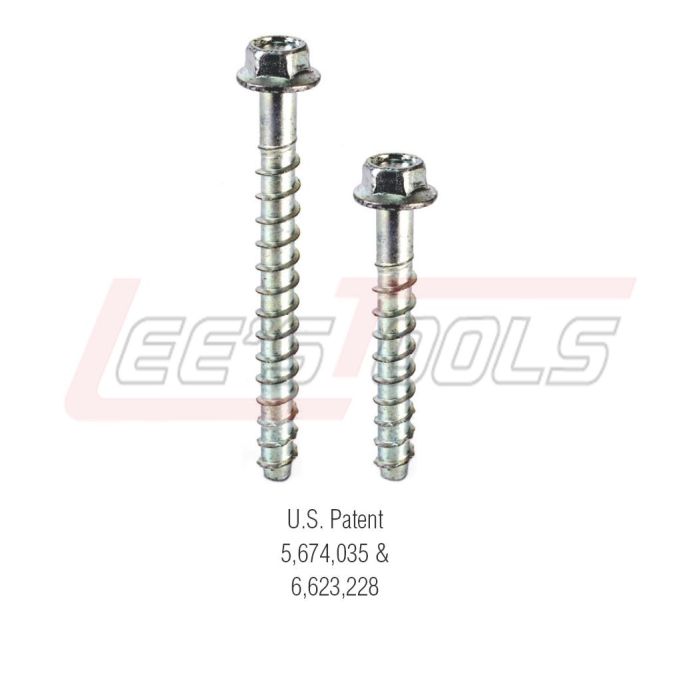

Titen HD Mini Screw Anchor for Concrete and Masonry

The Titen HD® Mini is an anchor for concrete and masonry. Similar to the larger Titen HD® screw anchor (page 20), the Titen HD® Mini anchor provides an easy solution for jobs that call for smaller anchors and in situations where minimum edge distance and reduced anchor spacing is a concern. The Titen HD Mini can be installed much more easily and quickly than traditional expansion anchors due to the anchor’s patented cutting teeth and thread design and the elimination of secondary setting steps.

Features:

·         Specialized heat-treating process creates tip hardness to facilitate cutting while the body remains ductile

·         Less spacing and edge distance required since the anchor does not exert expansion forces

·         No special installation tools required – holes can be drilled with rotary hammer or hammer drill with ANSI size bit. Anchors are installed with standard size sockets

·         Less installation time translates to lower installed cost

·         Removable, ideal for temporary anchorage Material: Carbon steel, heat treated Finish: Zinc plated.

Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with base material and will reduce the anchor’s load capacity. Use a Titen HD Mini screw anchor one time only. Installing the anchor multiple times may result in excessive thread wear and reduce load capacity.

·         Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus 1/2" minimum to allow the thread tapping dust to settle and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.

·         Insert the anchor through the fixture and into the hole.

·         Important: Install with an applied torque of 15 ft.-lbs. for the 1/4" Titen HD Mini and 25 ft-lbs for the 3/8" Titen HD Mini using a torque wrench, driver drill, hammer drill or cordless 1/4" impact driver with a maximum permitted torque rating of 100 ft.-lb.

Titen HD® Mini Anchor Product Data

Hole Dimensions
