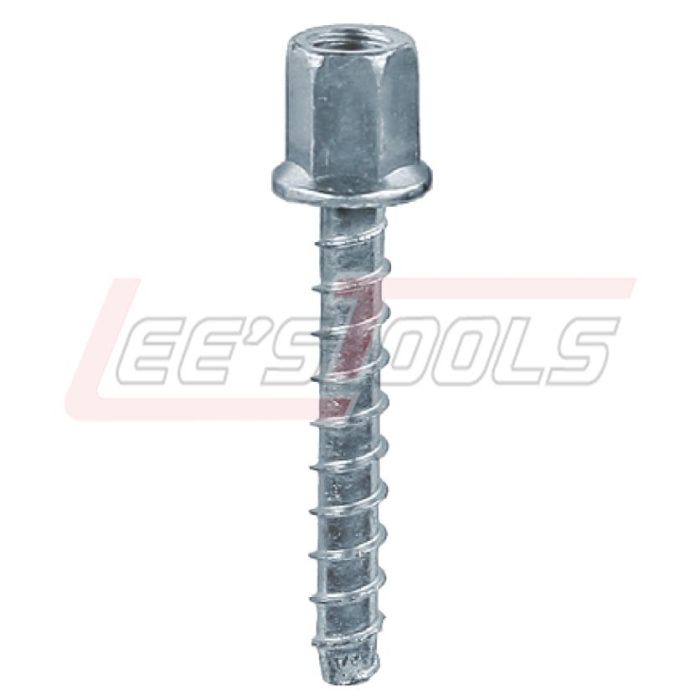

SIMPSON STRONG-TIE THD50234RH THD 3/8 x 2-3/4 Rod Hgr for 1/2" Rod

FOR MORE INFORMATION ON PRODUCT SPECIFICATION

SEE DETAILED IMAGES

Titen HD®Threaded Rod Hanger for Cracked and Uncracked Concrete

The Titen HD® rod hanger is a high-strength screw anchor designed to suspend threaded rod from concrete slabs and beams in order to hang pipes, cable tray and HVAC equipment. This anchor is code listed by ICC-ES for cracked and uncracked concrete applications under the 2009 IBC.

FEATURES

·         High-load capacity as a result of the full-length threads that undercut the concrete and effectively transfer load into the base material

·         Specialized heat-treating process creates greater hardness at the tip to facilitate cutting while the body remains ductile

·         Serrated cutting teeth and patented thread design enable quick and easy installation

·         No special installation tools required. Holes can be drilled with a rotary hammer or hammer drill with standard ANSI-size bit. Anchors are installed with standard-size sockets.

MATERIAL

·         Carbon steel, heat treated

FINISH

·         Zinc plated

CODES

·         ICC-ES ESR-2713 (PDF) (cracked and uncracked concrete)

·         (THD37212RH and THD50234RH)

·         Florida Statewide Product Approval FL15730.7 (cracked and uncracked concrete)

·         (THD37212RH and THD50234RH)

·         City of Los Angeles RR25741 (PDF) (cracked and uncracked concrete)

·         (THD37212RH and THD50234RH)

·         Factory Mutual 3031136

·         (THD37218RH and THD50234RH)

·         Factory Mutual 3035761

The load tables list values based upon results from the most recent testing and may not reflect those in current code reports. Where code jurisdictions apply, consult the current reports for applicable load values.
