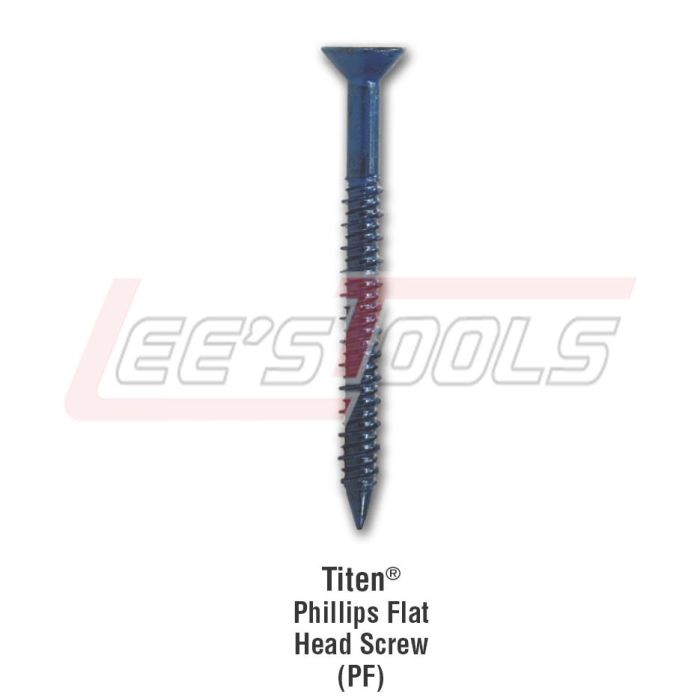

SIMPSON STRONG-TIE TTN25214PF TITEN-PHILLIPS 1/4 X 2 1/4

Titen® Concrete and Masonry Screws

Titen® screws are hardened screws for attaching all types of components to concrete and masonry. These fasteners are commonly used in applications such as attaching electrical boxes, light fixtures or window frames into concrete or masonry base materials.

Features:

·         Available in 3/16" and 1/4" diameter sizes

·         Available in hex and Phillips head designs in two colors

·         Titen drill bits included with each box

·         Warning: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, use these products in dry, interior and non-corrosive environments only.

Material: Heat-treated carbon steel

Finish: Zinc plated with a baked on ceramic coating

Codes: Florida FL 2355

Caution: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to thehardened  screw’s performance. Use the Simpson Strong-Tie installation tool kit as it has a bit that is designed to reduce the potential for overtightening the screw.

·         Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/2" to allow the thread tapping dust to settle and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.

·         Position fixture, insert screw and tighten using drill and installation tool fitted with a hex socket or Phillips bit. Preservative-treated wood applications: Suitable for use in non-ammonia formulations of CCA, ACQ-C, ACQ-D, CA-B, BX/DOT and zinc borate. Use in dry, interior environments only.

·         Use caution not to damage ceramic barrier coating during installation. Recommendations are based on testing and experience at time of publication and may change. Simpson Strong-Tie cannot provide estimates on service life of screws. Contact Simpson Strong-Tie for additional information.

Standard Blue Titen® Product Data (1/4" diameter)

1. H Suffix: Hex Head, PF Suffix: Phillips Flat Head.

2. One drill bit is included in each box.

3. Cartons consist of boxes of 100.
