SIMPSON STRONG-TIE TTNT01 TITEN DRILL BIT TOOL

Titen® Stainless-Steel Concrete and Masonry Screws

Stainless-steel Titen® screws are light-duty fasteners ideal for attaching various types of components to concrete and masonry, such as fastening electrical boxes or light fixtures. These screws offer the versatility of our standard Titen screws with enhanced corrosion protection. Available in hex and Phillips head, the Titen screws are designed for use with appropriately-sized drill bits that are included with each box.

Features:

•         Suitable for concrete, brick, grout-filled CMU and hollow-block applications

•         Suitable for some preservative-treated wood applications

•         Available in lengths from 1 1/4"–4" Material: Heat-treated type 410 stainless steel Finish: Zinc plated with a protective overcoat

Caution: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads. Overtightening and bending moments can initiate cracks detrimental to the hardened screw’s performance. Use the Simpson Strong-Tie installation tool kit as it has a bit that is designed to reduce the potential for overtightening the screw.

Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor’s load capacity.

•         Drill a hole in the base material using the appropriate diametercarbide drill bit as specified in the table.

•         Drill the hole to the specified embedment depth plus 1/2" to enable the thread tapping dust to settle and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.

•         Position fixture, insert screw and tighten using drill and Titen screw installation tool fitted with a hex socket or Phillips bit.

Preservative-treated wood applications: Suitable for use in non-ammonia formulations of CCA, ACQ-C, ACQ-D, CA-B, SBX/DOT and zinc borate. Acceptable for use in exterior environments. Use caution not to damage coating during installation. The 410 stainless-steel Titen with top coat provides “medium” corrosion protection. Recommendations are based on testing and experience at time of publication and may change. Simpson Strong-Tie cannot provide estimates on service life of screws.

410 Stainless-Steel Titen® Product Data

1. One drill bit is included in each box

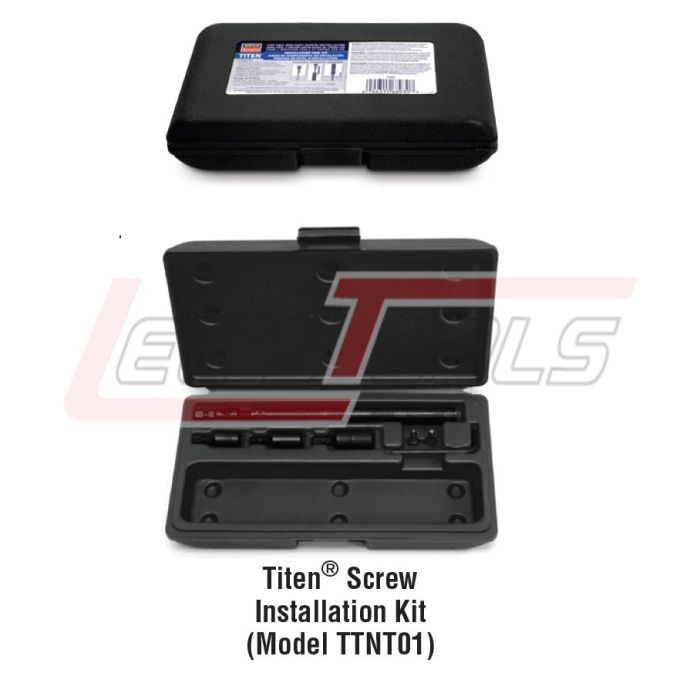

Titen® Screw – Installation Tool

The Simpson Strong-Tie® Titen® screw installation kit makes installation of Titen screws quick and easy. Accessories are compatible with a standard three-jaw style chuck, and the sockets have been designed to prevent over-torquing, which can lead to fastener failure. Comes packaged in a rugged plastic box ideal for storage of the installation kit and Titen screws.

Eight piece kit includes:

•         Drill bit holder

•         5 3/4" sleeve

•         1/4" and 5/16" hex sockets

•         Phillips bit socket

•         #2 and #3 Phillips bits

•         Allen wrench

Titen® Installation Tool

Titen® Screw – Drill Bits

The same bits that come included with boxes of Titen screws are also available separately. They work with the Titen Installation Tool as well as drills with a standard three-jaw style chuck.

Titen® Drill Bits
