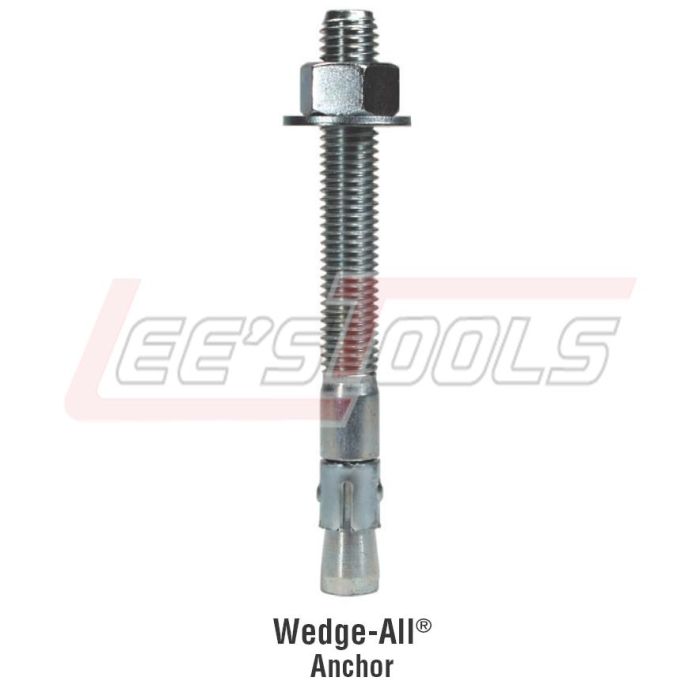

SIMPSON STRONG-TIE WA62412 WEDGE-ALL 5/8 X 4 1/2

Wedge-All® Wedge Anchors

The Wedge-All® wedge anchor is a non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled concrete masonry. Threaded studs are set by tightening the nut and are code-listed for grout-filled masonry applications only. The tie-wire version is set with the claw end of a hammer and is not code-listed.

Features:

·         One-piece, wrap-around clip that ensures uniform holding capacity that increases as tension is applied

·         Threaded end is chamfered for ease of starting nut

·         Most sizes feature full thread for added versatility

·         Threaded stud version is available in eight diameters and multiple lengths

Codes: ICC-ES ESR-1396 (CMU); City of L.A. RR24682; Factory Mutual 3017082 and 3031136; Florida FL 15730; Underwriters Laboratories File Ex3605; Meets requirements of Federal Specifications A-A-1923A, Type 4. The Tie-Wire anchor is not code listed.

Material: Carbon and stainless steel

Finish: Carbon steel anchors are available in zinc plated or mechanically galvanized Installation:

·         Holes in metal fixtures to be mounted should exceed nominal anchor diameter by 1/16" for 1/4" through 5/8" diameter anchors and by 1/8" for all other diameters.

·         Do not use an impact wrench to set or tighten the Wedge-All.

Caution: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.

Threaded studs:

·         Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth and blow it clean using compressed air. Overhead installations need not be blown clean. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.

·         Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture and drive into the hole until washer and nut are tight against fixture.

·         Tighten to the required installation torque.

·         Tie-Wire:

·         Drill a hole at least 1 1/2" deep using a 1/4" diameter carbide tipped bit.

·         Drive the anchor into the hole until the head is seated against the base material.

·         Set the anchor by prying/pulling the head with the claw end of the hammer.

For additional suggested specifications, see the Simpson Strong-Tie® Anchoring and Fastening Systems for Concrete and Masonry catalog.

Wedge-All® Anchor Installation Data

Wedge-All® Anchor Product Data Carbon Steel: Zinc Plated and Mechanically Galvanized

1. The published length is the overall length of the anchor. Allow one anchor diameter for the nut and washer thickness plus the fixture thickness when selecting the minimum length.

2. Special lengths are available on request. Load values are valid as long as minimum embedment depths are satisfied.

3. Tie-Wire Wedge-All® anchor, overall length is 2".

4. Bulk packaged Wedge-All® anchors available, call Simpson Strong-Tie® for details.
