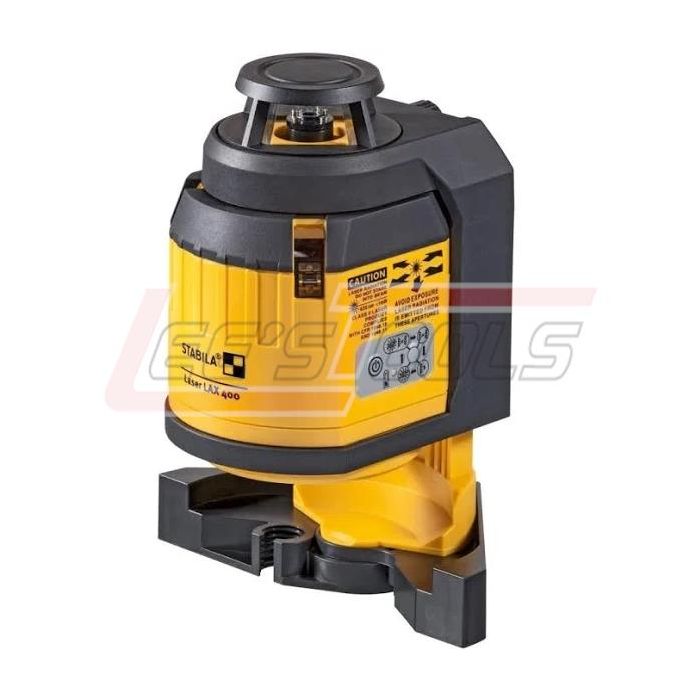

STABILA 03360 LAX 400 CROSSLINES & PLUMB DOT LASER W/O RECEIVER

Specifications:

Catalog #03360

Self Leveling Range± 4°

Working RangeVisual 60'/490' with receiver

Accuracy Tolerance Level+/- 3/8" @ 100'

Accuracy Tolerance Straightness+/- 1/4" @ 100'

Accuracy Tolerance Up Beam+/- 3/8" @ 100'

Battery Run Time10 Hours

Batteries4 AA

Laser class2

Output<1mW

Laser wavelength635nm

Weight lbs2.2

Dimensions6"X3.25"X4.5"

#03360/LAX400 Includes:LAX400 laser, target plate, wall bracket, high-vis laser goggles, batteries, manual and hard case.

FEATURES

·         Fully automatic, self leveling

·         360 degree level line

·         Two vertical lines at 90 degree angle on floor, walls and ceiling

·         Plumb dot/points

·         Laser pivots 360 degrees inside the housing

·         Fast layout fine adjustment knob pivots the right angle lines left/right

·         The dual purpose base allows positioning on flat surfaces or on standard 5/8"X11 tripods

·         Built-in V-groove rare earth magnetic mount and vertical elevation height adjustment

·         Self-leveling mechanism automatically locks on shut-down to prevent transport damage

·         Pulsed laser lines for use with optional receiver #07330
