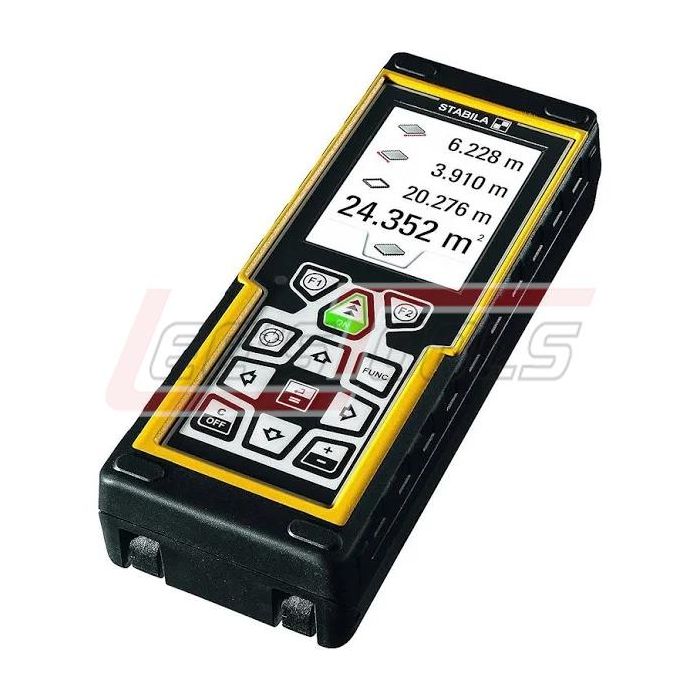

STABILA 06520 LD 520 LASER DISTANCE MEASURE W/ BLUETOOTH®

Laser Measurer

LD520 Laser distance Measurer

The LD520 has a 2.4 inch color display with high resolution for pin-sharp images even in strong light. The Bluetooth Smart (4.0) offers simple data exchange, e.g. with an iPhone or iPad. The new STABILA Measures app allows measurements to be inserted into photos or drawings. Do you use mobile devices such as the iPhone or iPad on the building site? If so you will be impressed by the facilities offered by the LD 520. The integrated Bluetooth® Smart technology (4.0) allows wireless transfer of your measurement data from the LD 520. The new STABILA Measures app allows measurements to be inserted into photos or drawings.

Features

·         Range: up to 650'

·         Camera Target Locator with 4X Zoom

·         Built in Inclinometer - built in, measures degrees, percent of grade and slope

·         +/- 1/16" accuracy throughout range

·         Stores last 20 measurements

·         Dust and Water protected – IP54

·         Complex Measurement package

·         Integrated Calculator – readings can be added to, multiplied, subtracted from, etc.

·         Range up to 650ft, accuracy 1mm (better than 1/16") in accordance with ISO 16331-1

·         Functions: 360 degree tilt sensor, area, volume, Pythagoras, indirect height, calculator and more

·         Intuitive full color Point Finder display and 4X zoom with icon based interface

·         The Stabila LD520 Laser Distance Measure has a digital target locator using a built-in camera with crosshairs. It has a 4x zoom and allows distances of up to 650 feet to be measured.

·         Sketch & incorporate measured values on a new generation Apple iPad, iPhone (Supporting BT 4.0)

·         Battery life: Up to 5,000 measurements
