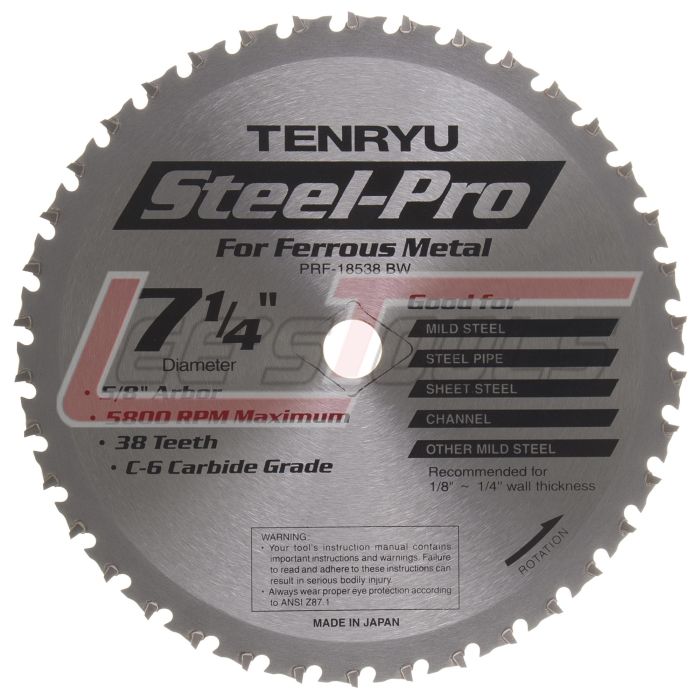

TENRYU PRF-18538BW 7-1/4" 38T 5/8"KO ARBOR ATB GRIND CARBIDE BLADE 0 RAKE 0.079 KERF 5800 RPM FERROUS METALS CIRCULAR S
STEEL-PRO® SERIES
TENRYU's steel
cutting carbide tipped saw blades for industrial performance
Cut ferrous metals (mild steel) faster, cleaner and easier. Save time, money,
the environment, and your respiratory health.
TENRYU's complete series of steel cutting saw blades called "Steel-Pro®" makes
light work out of all kinds of mild steel: steel studs, steel sheet, steel pipe,
channel, threaded rod and much, much more.
Specially formulated C-6 carbide grade, combined with our unique tip design,
resists breakage on impact and lasts longer- much longer than standard carbides
or abrasive discs. Special tooth geometry with "inserted" tooth design greatly
improves security of the tip, efficiency and durability.
Abrasive discs throw sparks and lots of dust including unhealthful fiberglass.
You shouldn't be breathing it in! Steel-Pro® blades reduce spark production and
eliminate abrasive wheel dust.
Abrasive discs wear quickly, requiring frequent blade changes. Steel-Pro® blades
allow you to keep working; eliminating down time for frequent blade changes. In
addition, Steel-Pro® cuts 5 to 10 times faster than abrasives. Typically, one
Steel-Pro® blade will outlast somewhere between 15 to 30 abrasive blades. Think
of all that non-productive "down time".
Abrasive discs leave a sharp burr at the cutting edge that must be removed
later. Steel-Pro® blades cut clean; eliminating this extremely time-consuming
after-cut process. "Time is money". Steel-Pro® saves BOTH!
EACH BLADE FEATURES:
·
Rugged plates and specially formulated carbide
tips with a special tooth grind for fast, clean cuts.
·
High quality cuts without the clouds of dust and
scorch marks associated with friction blades.
·
Cool cuts that leave the work piece edge free of
burrs.
·
Reduced cost-per-cut and maximized performance
for the operator as a result of fewer blade changes.
Please note all safety instructions before use and adhere to instructions for
maximum RPM speeds.
STEEL-PRO® SERIES
|
MODEL # |
DIA. |
TEETH |
ARBOR |
GRIND |
KERF |
RAKE |
APPLICATION |
|
PRF-15238 |
6" |
38 |
1/2" |
MTCG |
.079" |
0 |
For cordless or corded saws. |
|
PRF-16048 |
6-1/4" |
48 |
5/8" |
MTCG |
.079" |
0 |
For cordless or corded saws. |
|
PRF-18538BW |
7-1/4" |
38 |
5/8"KO |
ATB |
.079" |
0 |
Our Steel-Pro for cutting ferrous metal up to 1/4" thick. |
|
PRF-18538BW2 |
7-1/4" |
38 |
20mm |
MTCG |
.079" |
0 |
Mild steel up to 1/4" thick. Fits Jancy, Evolution® Saw. |
|
PRF-18548BW |
7-1/4" |
48 |
5/8"KO |
ATB |
.079" |
0 |
Our most popular Steel-Pro. Cuts thick (up to 1/8") and thin. |
|
PRF-18548BW2 |
7-1/4" |
48 |
20mm |
ATB |
.079" |
0 |
Mild steel up to 1/8" thick. Fits Jancy, Evolution® Saw. |
|
PRF-18556CB |
7-1/4" |
56 |
5/8"KO |
ATAF |
.071" |
-10 |
Additional carbide tip for smoother cutting of thin materials. |
|
PRF-18570CBN |
7-1/4" |
70 |
5/8"KO |
ATB |
.069" |
-10 |
For very thin steel. (Steel sheet, corrugated steel sheet etc.) |
|
PRF-18570BW2 |
7-1/4" |
70 |
20mm |
ATB |
.069" |
-10 |
For very thin steel. (Steel sheet, corrugated steel sheet etcc) |
|
PRF-20348CBN |
8" |
48 |
5/8" |
ATB |
.087" |
0 |
For ferrous metal cutting. General application. |
|
PRF-21048BW |
8-1/4" |
48 |
5/8"KO |
MTCG |
.087" |
0 |
The 8-1/4" Steel-Pro for ferrous metal cutting with circular saws. |
|
PRF-23048CBN |
9" |
48 |
1" |
ATB |
.087" |
0 |
For up to 1/8" thick steel on the Evolution Saw. |
|
PRF-25550D |
10" |
50 |
1"/ 5/8" |
TCG |
.098" |
0 |
For 10" circular saws and low RPM saws for ferrous metal. |
|
PRF-30560D* |
12" |
60 |
1" |
TCG |
.098" |
0 |
For cutting mild steel on low RPM dry cut saws. |
|
PRF-35572D* |
14" |
72 |
1" |
TCG |
.094" |
0 |
For use on dry-cut low RPM saws for cutting mild steel. |
|
PRF-40580D* |
16" |
80 |
1" |
TCG |
.102" |
0 |
For use on low RPM saws for cutting mild steel. |
*These blades are for use on low RPM "dry-cut" chop saws only.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY
FUNCTIONING UPPER and LOWER BLADE GUARDS.
STEEL-PRO®
STABILIZER
TENRYU establishes an even higher standard of steel-cutting excellence! TENRYU
has raised the bar once again in the portable saw, steel-cutting industry!
Virtually all test monitors recognized better longevity of the blade. This new,
"STABILIZER" technology stabilizes the blade in the cut with much less vibration
during operation.
Cleaner cuts, longer life and more a comfortable feeling are great benefits of
"STABILIZER", making it more "user-friendly".
TENRYU blades do not require blade plate stabilizes, as is commonly known in the
market.
In
fact, the patent pending design technology of our new "STABILIZER" blade
eliminates any need for a blade stabilizer and produced an even more effective
job!
EACH BLADE FEATURES:
Newly invented "STABILIZER" plate (Pat. Pend.) improves the cutting performance
·
Better straightness of cut
·
Cleaner cuts
·
Longer cutting life
·
Reduced burring
·
Reduced scattering of steel debris
·
Less Vibration
Please note all safety instructions before use and adhere to instructions for
maximum RPM speeds.
STEEL-PRO® STABILIZER
|
MODEL # |
DIA. |
TEETH |
ARBOR |
GRIND |
KERF |
RAKE |
APPLICATION |
|
PRF-18536BWK |
7-1/4" |
36 |
5/8"KO |
MTCG |
.079" |
0 |
Mild steel. 1/8" to 1/4" thickness. |
|
PRF-18536BWK2 |
7-1/4" |
36 |
20mm |
MTCG |
.079" |
0 |
Mild steel. 1/8" to 1/4" thickness. Fits 7, 7-1/4" and 7-1/2" Saws. |
|
PRF-18548BWK |
7-1/4" |
48 |
5/8"KO |
MTCG |
.079" |
0 |
Mild steel. 1/8" to 1/4" thickness. |
|
PRF-18548BWK2 |
7-1/4" |
48 |
20mm |
MTCG |
.079" |
0 |
Mild steel. 1/8" to 1/4" thickness. Fits 7, 7-1/4" and 7-1/2" Saws. |
|
PRF-20348BWK |
8" |
48 |
5/8"KO |
MTCG |
.087" |
0 |
Mild steel. Up to 1/8" thickness. |
|
PRF-21048BWK |
8-1/4" |
48 |
5/8"KO |
MTCG |
.079" |
0 |
Mild steel. Up to 1/8" thickness. |
|
PRF-23048BWK |
9" |
48 |
1" |
MTCG |
.087" |
0 |
Mild steel. Up to 1/8" thickness. |
|
PRF-30560DK |
12" |
60 |
1" |
TCG |
.098 |
0 |
For 12" Dry cutter (Low RPM). |
|
PRF-35572DK |
14" |
72 |
1" |
TCG |
.098" |
0 |
For 14" Dry cutter (Low RPM). |
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY
FUNCTIONING UPPER and LOWER BLADE GUARDS.
STEEL-PRO®
SELECT
The
Steel-Pro® Select is TENRYU's 2nd generation of mild steel cutting carbide
tipped saw blades Quieter!
These blades are designed to cut mild steel as STEEL-PRO® blades do, but cut
quieter than STEEL-PRO® and last longer as well.
EACH BLADE FEATURES:
·
Exclusive two-ply plate design for self dampening
and low noise operation.
·
Individually hammer-tensioned steel plates for
true run.
·
Tough C-6 carbide for impact resistance and long
cutting life.
·
Unique tip design and geometry for smoother and
easier cuts.
·
Inserted teeth with chip limiting steel support
for added durability and safety.
Steel-Pro® Select blades, when used for the proper application, will save lots
of time and can outlast abrasive discs up to 30 to 1.
Please note all safety instructions before use and adhere to instructions for
maximum rpm speeds.
STEEL-PRO® SELECT SERIES
|
MODEL # |
DIA. |
TEETH |
ARBOR |
GRIND |
KERF |
RAKE |
APPLICATION |
|
PRF-18538DS |
7-1/4" |
38 |
5/8"KO |
TCG |
.079" |
0 |
Steel-Pro Select for ferrous metal up to 1/4" thick. |
|
PRF-18548DS |
7-1/4" |
48 |
5/8"KO |
TCG |
.079" |
0 |
Steel-Pro Select for ferrous metal up to 1/8" thick. |
|
PRF-25550DS |
10" |
50 |
1"/ 5/8" |
TCG |
.091" |
0 |
Steel- Pro Select for quiet cuts in mild steel. |
|
PRF-30560DS* |
12" |
60 |
1" |
TCG |
.094" |
0 |
Steel-Pro Select for low vibration cuts and less noise in mild steel. |
|
PRF-30580BWS* |
12" |
80 |
1" |
MTCG |
.091" |
-5 |
Steel-Pro Select for low vibration cuts and less noise in mild steel
(more teeth for cutting thin stock). |
|
PRF-35572DS* |
14" |
72 |
1" |
TCG |
.094" |
0 |
Steel-Pro Select for low vibration cuts and less noise in mild steel. |
|
PRF-35590BWS* |
14" |
90 |
1" |
MTCG |
.091" |
-5 |
Steel-Pro Select for low vibration cuts and less noise in mild steel
(more teeth for cutting thin stock). |
*These blades are for use on low RPM "dry-cut" chop saws only.
ALWAYS WEAR EYE PROTECTION that meets ANSI Z87.1 requir4ements and PROPERLY
FUNCTIONING UPPER and LOWER BLADE GUARDS.
STEEL-PRO® PLUS
The Steel-Pro® Plus is the newest addition to our Steel-Pro® line. It is made
especially for use with lower RPM saws such as WORM DRIVE SAWS to cut a wide
variety of mild steel materials with:
·
Longer life than standard Steel-Pro® blades
·
Fewer blade changes.
·
No dust clouds
·
Reduced sparking
·
Less noise
·
Less burr on edges
EACH BLADE FEATURES:
·
New Cermet (ceramic metal) tips for greater
impact resistance and longer cutting life.
·
Individually Hammer-tensioned steel plates for
true run.
·
Unique tooth design and geometry for smoother and
easier cuts.
·
Inserted teeth with chip limiting steel support
for added durability and safety.
Steel-Pro Plus is particularly effective for cutting thicker, solid stock and
higher tensile all-thread rod.
These blades, when used for the proper application, will save much time and
outlast abrasive discs up to 60 to 1.
Please note all safety instructions before use and adhere to instructions for
maximum RPM speeds.
STEEL-PRO® PLUS SERIES
|
MODEL # |
DIA. |
TEETH |
ARBOR |
GRIND |
KERF |
RAKE |
APPLICATION |
|
PRF-18536CBNP |
7-1/4" |
36 |
Diamond |
ATB |
.074" |
0 |
Best when used on worm drive type saws or dedicated, low RPM,
steel-cutting saws. |
|
PRF-18536CBNP2 |
7-1/4" |
36 |
20mm |
MTCG |
.074" |
0 |
Fits Jancy/Evolution saws. |
ALWAYS
WEAR EYE PROTECTION that meets ANSI Z87.1 requirements and PROPERLY FUNCTIONING
UPPER and LOWER BLADES GUARD
| Availability | In Stock |
|---|---|
| Manufacturer | TENRYU |
| Manufacturer Sku | PRF-18538BW |
