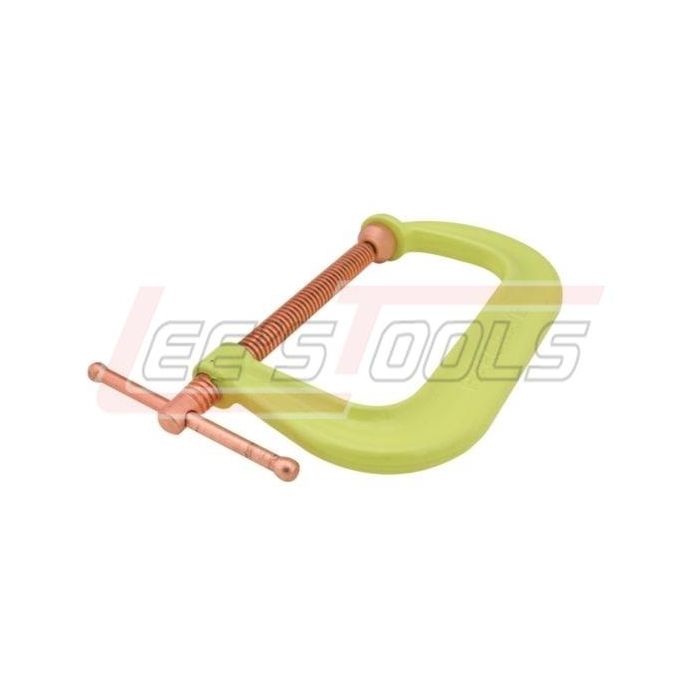

WILTON 20483 H404CS, Spark-Duty Drop Forged Hi-Vis C-Clamp 0 - 4” Opening Capacity
$55.66
In stock
SKU
1178120
H404CS, 400-CS Series C-Clamp, 0" - 4" Jaw Opening, 2-3/4" Throat Dept
Hargrave Hi-Vis C-Clamps conform to OSHA safety color standards for physical
hazards regulation# 1910.144. Each have an oscillating head with a high quality
steel pad built to last and provides firm gripping action on angular surfaces.
Additional Information
·
Drop forged, regular duty with extra deep throat
·
Spatter resistant copper plated spindle and pad
·
Exceptional value high-visibility welding clamps
·
Lifetime Warranty
Specification
|
Model Number |
H404CS
|
|
Brand
|
Hargrave
|
|
Height
|
1.2 inch |
|
Width
|
5.5 inch |
|
Length
|
10.2 inch |
|
Net Weight |
3.4 pound |
|
Gross Weight |
3.4 pound |
|
Opening Capacity Max. |
0 - 4 " |
|
Nom. Clamp Pressure |
6,200 Lbs |
|
Opening Capacity Max |
0 - 4 " |
|
Spindle Diameter |
¾ " |
|
Throat Depth |
2¾ " |
|
Size
|
4 " |
| Availability | In Stock |
|---|---|
| Manufacturer | WILTON |
| Manufacturer Sku | 20483 |
