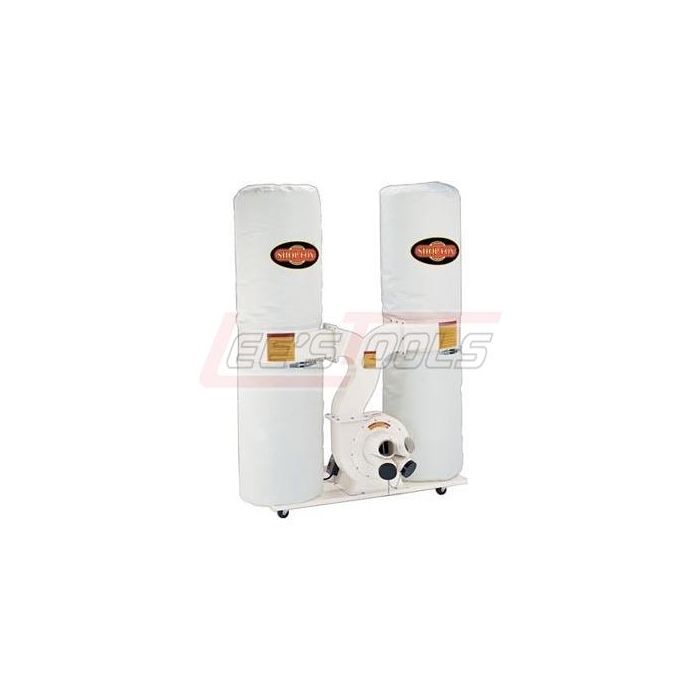

WOODSTOCK W1687 SHOP FOX® 3 H.P. 2,800 CFM Dust Collector
$1,335.00
Out of stock
SKU
1231617
3 HP 2,800 CFM Dust
Collector
Description
If you are ready to take your dust collection system to the
next level, make this 3 HP Dust Collector your first choice. The increased air
suction capacity will allow you to build a bigger and more complex dust
collection system with room to spare. Also, the double collection setup means
less downtime emptying and shaking out bags, which means you'll be able to
spend more time actually making the dust! CSA certified meeting CSA C22.2
#243-M91 and UL 1017-4th standards! For wood dust only. Models manufactured
after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE)
lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags
(D4573-5pk) can be purchased separately for any collectors that do not include
them.
Specifications
|
Motor size |
3 HP, 240V, single-phase, 3450
RPM, 12A |
|
Air suction capacity |
approx. 2830 CFM |
|
Static pressure |
14.4 |
|
Impeller |
13" balanced steel,
radial fin |
|
Max. inlet size |
8" |
|
Inlet adapter |
4-way x 4" inlets |
|
Bag size (diameter x depth) |
19" x 33" (4) |
|
Height (with bags inflated) |
78" |
|
Bag capacity |
10.8 cubic feet |
|
Standard bag filtration |
2.5 micron |
|
CSA certified |
|
|
Height with bags inflated |
78" |
|
Approximate shipping weight |
167 lbs. |
| Availability | Out of Stock |
|---|---|
| Manufacturer | WOODSTOCK |
| Manufacturer Sku | W1687 |
